Copper Bar Processing Machine

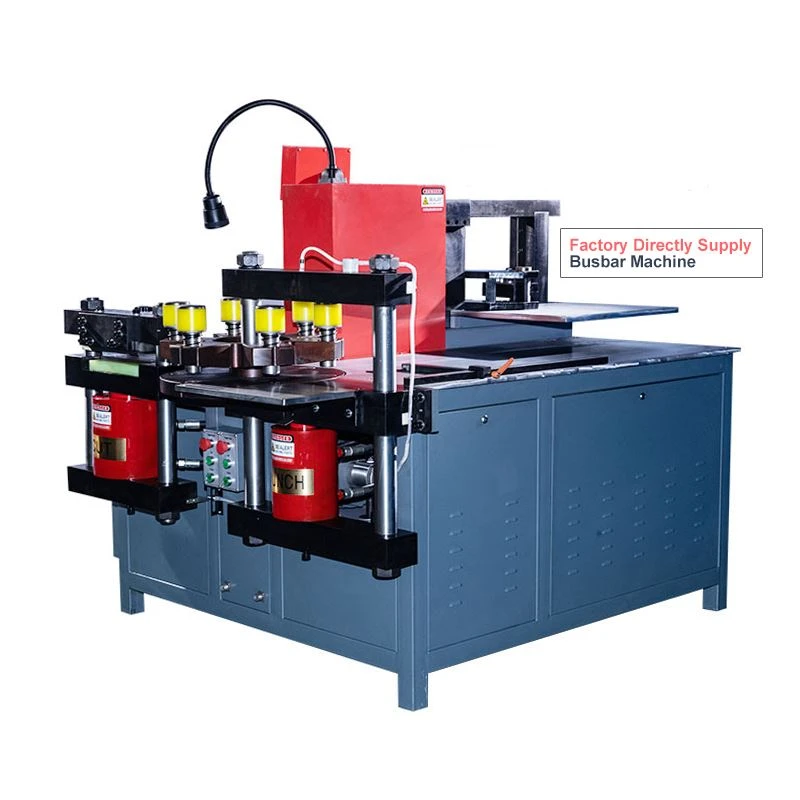

* This DSMX-503ESK Copper Bar Processing Machine has three independently working hydraulic stations for punching, shearing and bending. The three stations can work at the same time without affecting each other.

* The standard molds are complete: round holes Φ7/Φ9/Φ11/Φ13/Φ17/Φ21, oblong holes Φ13×18, Φ17×21, plus 3 sets of flat bends and 1 set of embossing.

Standard configuration

Punching Mold

Bending Mold

Max. Cutting Force (KN) 800

Max. Cutting Width *Thickness(mm) 260x16

Max. Punching Force (KN) 500

Punching Range (mm) Φ3.2-Φ35

Max. Bending Force (KN) 500

Vertical bend thickness * width (mm) 10X100

Flat bend thickness * width (mm) 16X260

Out Dimensions(mm) 1925X1560X1490

Motor power(KW) 3X5.5KW

Power Voltage 380V 50HZ

Language Chinese/English/Russian(Supports multiple languages)

Machine weight(KG) 2000

 &Cut

The total diameter of the shearing station cylinder is 245mm/inner diameter 190mm/piston rod 120mm/shearing force 800KN. It can process copper and aluminum rows up to 260mm wide and 16mm thick.Double column shearing, smooth cross section, no burrs, no scrap, and no sagging corners.

&Punch

The punching molds have all passed the fatigue test, and 5,000 holes can be punched continuously without failure, 0.2 minutes/hole, and the minimum hole diameter is φ3.2mm. The maximum hole diameter is φ35mm.The 100% pure copper motor has a 5-year warranty, Cr12MoV punching die.

 &Bend

The bending accuracy is ±0.5°, the minimum processing is 3mm thick and 20mm wide, and the maximum processing is 16mm thick and 260mm wide.

45# forging and bending die, which are durable and wear-resistant.

DESG Copper Bar Processing Machine is a three-in-one multi-functional equipment that integrates punching, shearing and bending. It is widely used in the processing of copper and aluminum busbars in high and low voltage switch cabinets, distribution cabinets, photovoltaic new energy, transformers and other electrical industries. The equipment has stable
performance, high precision and easy operation. It is an ideal processing equipment for global electrical equipment manufacturers.

Equipment capabilities:
1. Equipped with three independent hydraulic stations, enabling simultaneous operation of three working stations for higher efficiency.
2. Supplied with a complete set of standard molds to meet various punching and bending processing requirements.
3. Triple-positioning punching ensures high precision and efficiency, supporting 50,000 consecutive trouble-free punching operations.
4. Bending accuracy reaches ±0.5°, with smooth and burr-free shearing sections.
Thickened integrated shearing beam features stable, durable and deformation-resistant structure.
5. Pure copper motor with a 5-year warranty, paired with highly wear-resistant molds.
6. PLC intelligent control with multi-language support for simple and convenient operation.
Company strength:
Jinan Deshang CNC Equipment Co., Ltd. is a national high-tech enterprise with more than 15 years of manufacturing experience.
- 11,000㎡ modern production plant
- More than 40 sets of advanced production equipment
- More than 30 professional R&D engineers
- 47 national patents
- Long-term partners of ABB, Siemens, Chint and other enterprises
Customized services:
- The voltage can be customized according to the needs of different countries
- Customization of appearance, color and brand LOGO
- Customization of processing range specifications
- Software language support: English, Spanish, French, Russian, Arabic, etc.
- Special functions and structure customization
