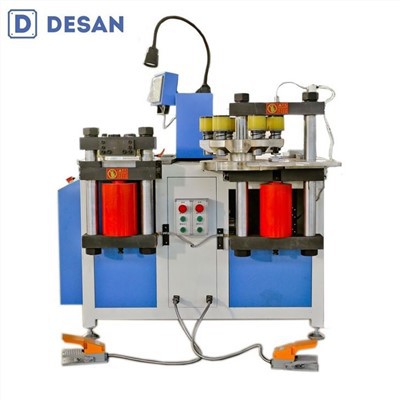

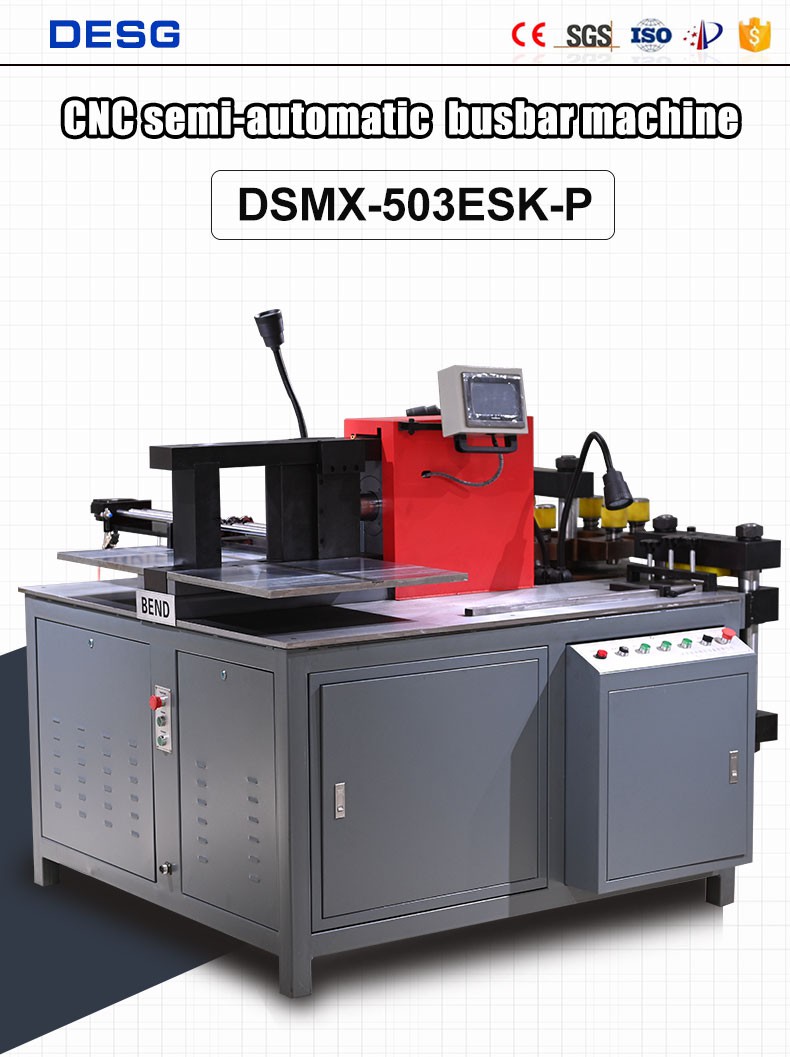

Factory 800kn 260mm 16mm Copper Alum Hydraulic BusBar Machine.

The product has three processing stations: punching, shearing, and bending, and is designed with three independent hydraulic systems. The punching, shearing, and bending stations can work simultaneously. The punching station controls the punching coordinates through servo motors and PLC, enabling continuous positioning and punching of porous workpieces, which is efficient and accurate. The cutting station automatically controls the cutting block size through servo motors and PLC, making it convenient and efficient. The bending station controls the bending length through a servo motor, automatically locates the material blocking position, and can achieve a program to locate multiple angles and bending positions.One machine multi-purpose quality assurance.





Adopting servo stop material control system, divided into: cutting mode, punching mode, and bending mode



Cutting mode asshown in the figure:
(1) Set the same length to cutmultiple pieces
(2) Set different lengths to cutmultiple pieces and singlepieces of different lengths.

The punching modeis shown in the figure:

(1)Set multiple irregular punchingholes with different coordinatesand fill in the coordinates directly

(2) Set a varety of templates: 1 hole.2 holes, 4 holes, etc. It is simpleand efficient to directly apply thetemplate.

The bending modeis shown in the figure:

( 1) The user interface is intuitive andeasy to understand.

(2) Stable performance and easyoperation

(3)High bending precision andgood operation repeatability







Product parameters:



Busbar Machine Model		DSMX-303ESK-B	DSMX-503ESK-B	DSMX-803ESK-B
Punching	Max.Puncing Force (KN)	300	500	800
	Punching Diameter Range (MM)	Ø4.3-Ø30	Ø4.3-Ø36	Ø4.3-Ø36
	Max. Thickness (MM)	12	16	20
	Max. Width (MM)	160	260	300
Shearing/ Cutting	Max.Shearing Thickness(KN)	12	16	20
	Max. Shearing Width (MM)	160	260	300
	Max. Bending Force (KN)	500	800	800
Vertical Bending	Max. Thickness (MM)	10	10	10
	Max. Width (MM)	100	100	100
Horizontal Bending	Max. Width (MM)	12	16	20
	Max. Width (MM)	150	260	300
Twisting Bending	Max. Thickness (MM)	12	16	20
	Max. Width (MM)	160	260	200
Out Dimension	Out Dimension	1890*1350*1400	1925*1560*1490	2050*1600*1650
Power	Power	3 x 4kw	3 x 5.5kw	3 x 5.5kw
CNC Precision	Bending Precision	±1°	±1°	±1°
	Repeat Bending Precision	±0.3°	±0.3°	±0.3°



Product Details：



Cnc Servo Motor Busbar Machine Manufacturer

Cutting Station:

Double column shear structure, flat section, no waste, no burrsno collapsed corners. No burrs, no collapsed corners.


Punching Station:

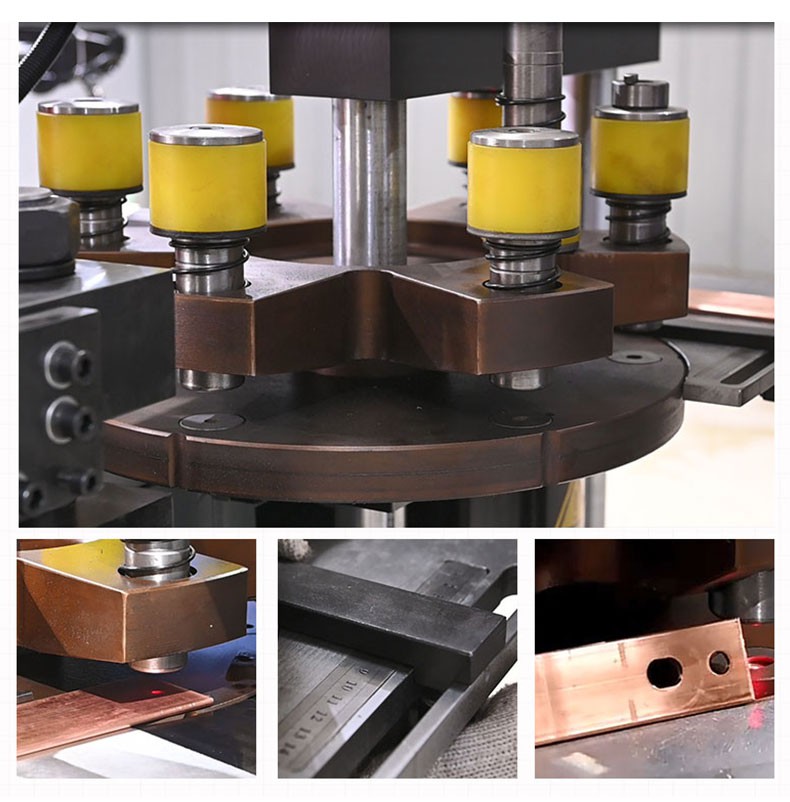

It is a six-mode turntable, made of ductile cast iron, which does not need to change moulds, reduces misoperation due to frequent mould changes, and lowers the damage rate of moulds. The carousel is an integral part, which ensures the absolute alignment of the upper and lower moulds and improves the concentricity of the moulds, and the service life of the moulds is greatly improved.

Bending Station:
The closed bending structure makes it more uniform whenprocessing flat bending and embossing. Greatly improve therepeat positioning accuracy in mass production. lt also adoptsdouble-layer working table, which realises the real sense of threeworking stations working at the same time without affecting eachother.

PLC Control:
Adopting a complete Siemens computing system, CNC control isachieved through the cooperation of PLC and displacementsensors,making bending more precise. The equipmentautomatically calculates the cutting length, bending angle, andbending point, making the operation simple and easy to use.

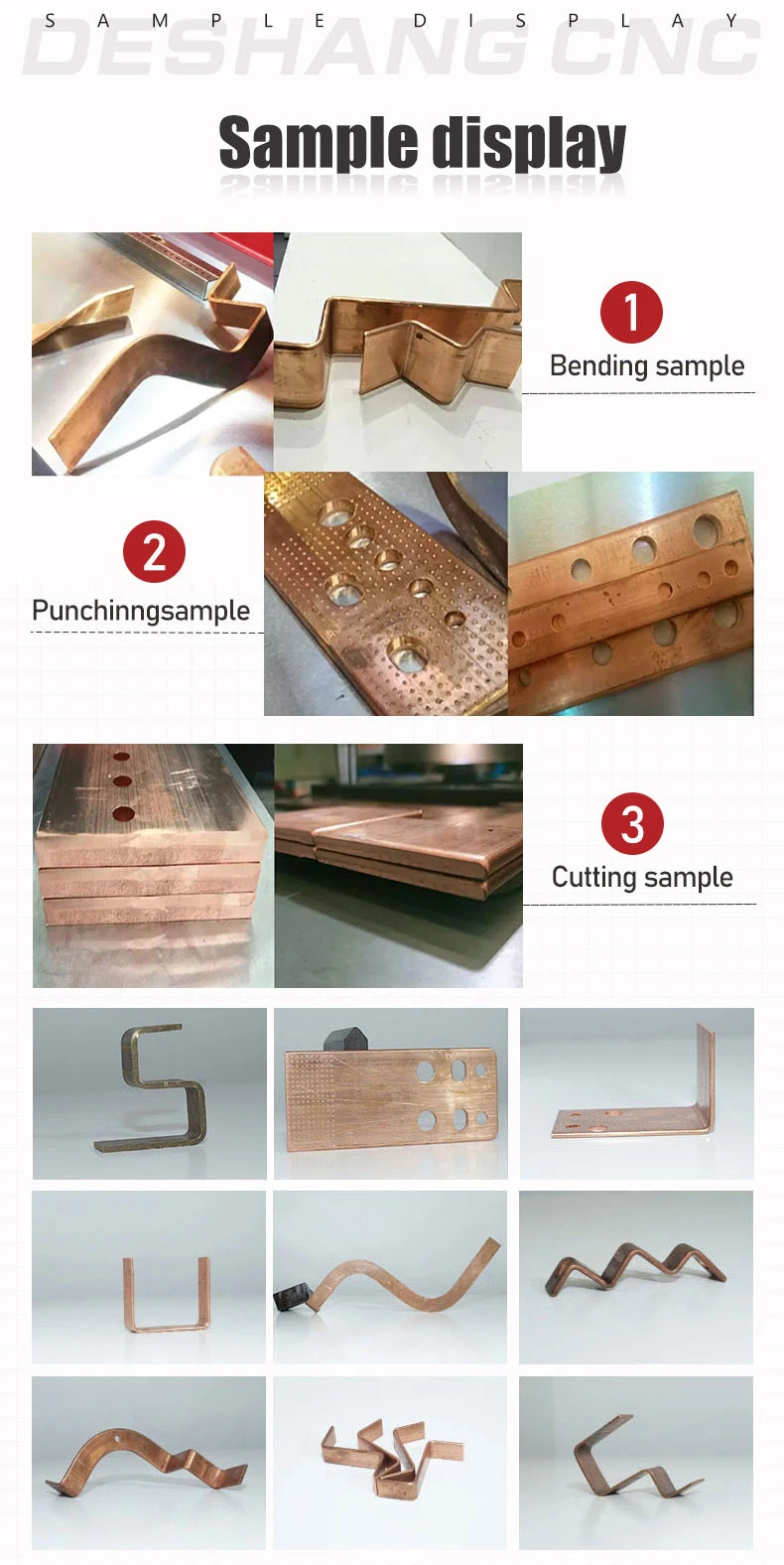

Sample display Processing workpiece:

The first one is to bend the sample.

The second one is a punched sample.

The third one is the shear cut sample.





Cooperation Cases

Manufacturer of busbar processing mechanism

Cnc Servo Motor Busbar Machine Manufacturer



FAQ

1.What is your payment terms?

40% T/T deposit, 60% balance be paid before loading after good ready.

2. What is your delivery time?

Within 15 working days after your deposit.

3. What is your power supply?

We could customized it according to your countries power supply.

4. What is your Min order quantity?

One set.

5. Are all the labels and instuctions of the machine in English?

Yes. The labels on the machine and the manual books are Write in English .

6. What other busbar processing related machines do we provide?

We provide you with multiple options: Busbar winding machine, busbar chamfering machine, copper plate leveling machine, portable busbar processing machine,busbar cutting tools, busbar bending tools, busbar punching tools,hydraulic pump, hand pump, etc.
