Bus Bar Bending Machine

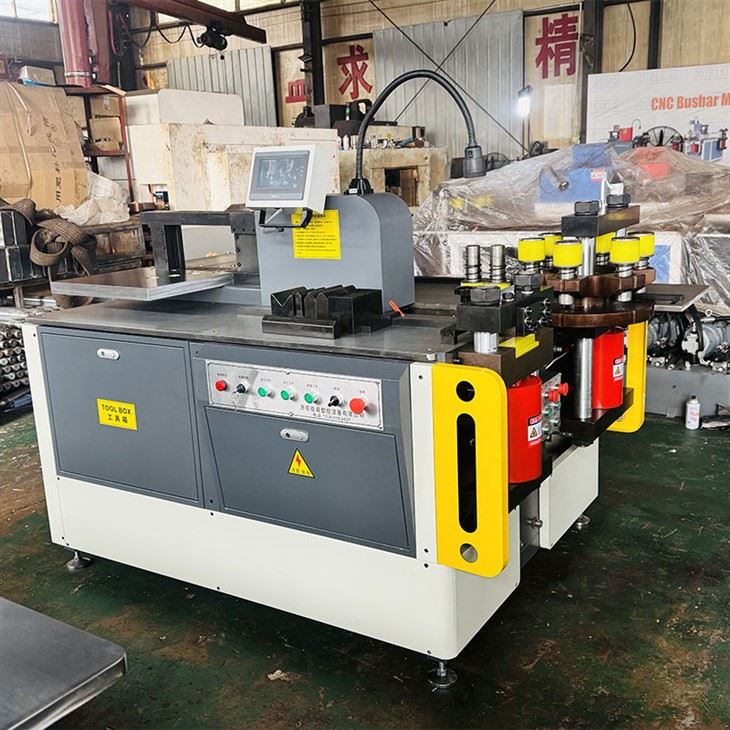

Model :DSMX-303ESK-B gray-white Bus bar bending Machine, the weight of the equipment can reach 1.38 tons, the punching/bending force can reach 300 kN, and the processing range can reach a width of 160 mm and a thickness of 15 mm.
Function: cutting, bending, punching.The shearing, punching, and bending stations use 45# forged materials.

The equipment adopts Siemens PLC intelligent control system, and the copper and aluminum busbars can be processed steadily, accurately and quickly! Just click the button to start the whole process automation. ​
Zero error in shearing, super flexible punching, flat bending, vertical bending, and U-bending can be done in one go. Complex processes such as embossing, flattening, twisting, and crimping can be easily handled, meeting all kinds of processing needs in one stop.

◆Shearing station

The shearing part is made of cast iron with a thickened middle cross beam, which is more durable. The filing and cutting method is adopted, and the shearing edge is smooth, burr-free and flat, with beautiful appearance, and no waste during shearing.



◆ Shearing Tools

Upper and lower shear knives and upper and lower polyurethane pads



◆The six-position turntable punching station

uses ductile iron technology, which eliminates the need for mold change, reduces incorrect operation and mold damage. The turntable is processed as a whole to ensure that the upper and lower molds are aligned, improving concentricity and life.

◆Punching Tools

φ7,,φ9, φ11, φ13, φ17, φ21,

φ13×18, φ17×21

◆Bending station

The bending station uses a closed bending structure to make the flat bending and embossing process more uniform. Equipped with a double-layer workbench, it can effectively achieve the effect of three stations working simultaneously without interfering with each other.

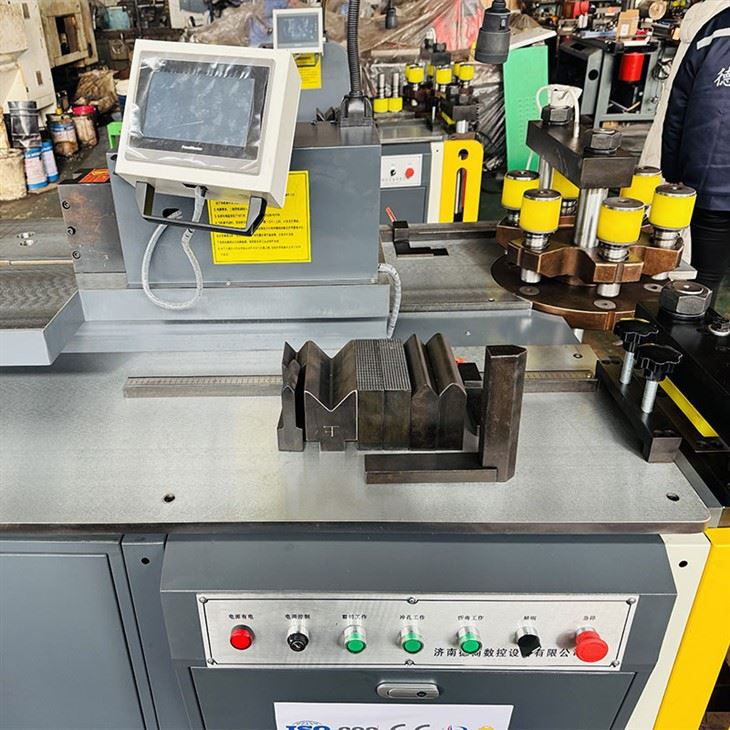

◆Bending Tools

Vertical Bending Tool：R80
Horizontal Bending Tools：R3,R5,R10
U Typy Bending Tool

Bus Bar Bending Machine function:

Bending processing of various complex structures can be realized, including:
Plane bending: complete the straight plane bending process to shape the plane bending structure with precise angles.
Vertical bending: realize vertical bending perpendicular to the processing plane, suitable for the forming of three-dimensional structural parts.
U-shaped bending: processing to form a U-shaped groove structure, supporting customized needs of different opening sizes and depths.
Embossed process: forming specific patterns or patterns on the surface of the workpiece through mold pressing, which is both aesthetic and functional.
Flattening: flattening of curved or irregular workpieces to ensure surface flatness and dimensional accuracy.
Twist forming: spiral twisting of the workpiece is realized through the rotary stretching process, which is suitable for the processing of special structural parts.
Cable connector crimping: professional crimping function is provided for cable terminals to ensure the stability and reliability of electrical connections

# Precision:

To ensure the accuracy of different material angles, the system can set elastic compensation
# Safety:

Set a time when the unmanned device reaches the set time to automatically shut down
# Operation:

You can choose angle bending to automatically calculate the material length, bending angle, and bending point. (Avoid  using a calculator to perform complex calculations, and allow beginners to make the same qualified products as the master without wasting a copper bar. Limit bending: A common operation method when the angle is unknown, simple and efficient.)
# Storage:

It has a memory function, which is convenient for repeated operations. You can also insert a USB flash drive to import or export memory data.
