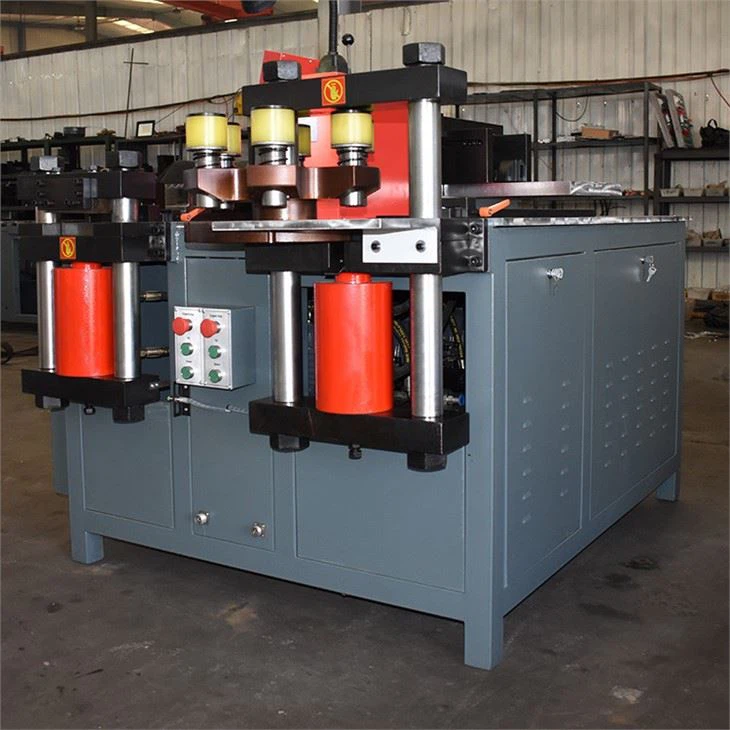

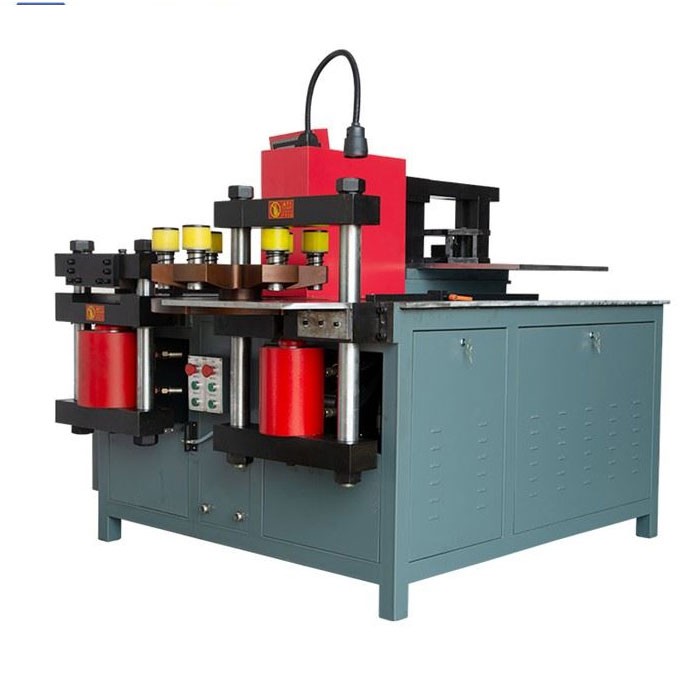

CNC Busbar Bending Punching Cutting Machine
The three processing units can work at the same time without affecting each other, and can punch, cut, and bend copper bus bars and aluminum bus bars.
Dimensions: 2050*1600*1650mm
Function: Cutting, Bending, Punching
Max thickness: 20mm
Maxi width: 300mm
Length: customize
Motor Power: 3×5.5KW
Description
Product Details
Jinan Deshang CNC equipment Co., Ltd., located in the beautiful "City of Springs"Jinan, is engaged in research, development, production and sales of CNC and hydraulic equipment.
Advantages of DS-803SK-B,CNC Busbar Bending Punching Cutting Machine
The three processing units can work at the same time without affecting each other, and can punch, cut, and bend copper bus bars and aluminum bus bars.
Features:
1. Punching station: Turret punch unit installed with 6 punching dies, no need to change punching dies frequently, save time, reduce die change error, longthen the lifetime of punching dies.
2. Cutting station: Two scissors shearing struction. there is no waste busbar generated. The cutting edge is smooth and neat.
3. Bending station: NC control the precision of bending angel. It can bend copper and aluminum busbar in vertical direction and horizontal direction. Through using the customized dies. The bending station can bend copper and aluminum round bars, twisting copper and aluminum flat bars, press cable joint etc.
The processing range is the widest can be processed to 300mm, the thickest can be processed to 20mm.
DS-803SK-B,CNC Busbar Bending Punching Cutting Machine,
The maximum punching force can reach 800kn. The turret punching structure is wear-resistant and efficient. The four-hole, six-hole and eight-hole turret mold nesting system made of nodular cast iron has long service life and high accuracy. Replacement Simple.
The shearing station adopts the double-column shearing structure, the shearing cylinder is increased to 50 tons, the shearing force is greater, the cutting mouth is flat and there is no waste, and it is not easy to appear burrs, collapsed feet, etc.
The bending unit adopts closed bending, and both the output point and the stress point are on the beam, so that the mechanical strength is greatly strengthened, so as to ensure that the upper and lower angles of the processed workpiece are consistent.
DS-803SK-B,CNC Busbar Bending Punching Cutting Machine,
More specifications molds are available:
Complete the processing of various specifications of busbars and meet various processing needs by changing different molds
Product Application
The main purpose of the bus processing machine is suitable for high and low voltage switchgear, high and low voltage complete sets, power transformers and other manufacturing industries.
Product Parameter
Model No. | DS-803SK-B | |
Colour | Gray | |
Punch | Max. Punch Force | 800kn |
Punch Diameter | ∅4.3—∅36mm | |
Max. Thickness | 20mm | |
Max. Width | 300mm | |
Shear Cut | Max. Cut Force | 800kn |
Max. Cut Thickness | 20mm | |
Max. Cut Width | 300mm | |
Horizontal Bend | Max. Punch Force | 800kn |
Max. Thickness | 20mm | |
Max. Width | 300mm | |
Vertical Bend | Max. Width | 10 x 100 |
Max. Angle (Degree) | 90° | |
Dimension | MM | 2050*1600*1650mm |
Moteur Power | KW | 3*5.5 |
Weight | KG | 2300 |
CNC Precision | Bend Precision | ±1° |
Repeat Bend Precision | ±0.2° | |
Finished product display
DS-803SK-B,CNC Busbar Bending Punching Cutting Machine
FAQ
Q: How to get a accurate quotation from us?
A: Please provide us the details of material, max thickness and max width.
Q: Can you do OEM service?
A: Yes, we can. your design is accepted, your own logo can be used on the machine.
Q: What's the shipping cost from china to your country?
A: We can send machine to your port or door address by sea or airplane, please kindly tell us your nearest port or address with postcode, we have reliable shipping agent to insure the safe convenient and time delivery.
Q: How to operate this machine?
A: Video line of our factory or we send you the video directly.
