Automatic Busbar Machine For High Low Voltage Switchgear

Automatic positioning busbar processing machine is an automated equipment used for processing copper and aluminum busbar bars, Automatic Busbar Machine For High Low Voltage Switchgear Here is a detailed introduction:
Features
1. Integration of multiple processing functions: It can achieve automatic feeding, automatic positioning, automatic clamping, automatic punching, automatic cutting, automatic bending and other functions. Multiple processing procedures for busbar can be completed on one device, which is very convenient.

2. High precision positioning: By setting parameters such as cutting size, punching distance, and hole distance through the touch screen, the X-axis and Y-axis coordinate axes can automatically adjust the positioning, and the positioning error is usually ≤ 0.1mm, ensuring accurate positioning.

3. Efficient production: The automatic positioning busbar processing machine adopts a dual column dual blade cutting structure and a six mold rotary table design. The cutting edge is flat and free of burrs, without the need for subsequent polishing, and supports various irregular hole processing without frequent mold replacement.

4. Stable performance: The automatic positioning busbar machine equipment adopts high-quality accessories such as Siemens PLC and Schneider Electric components to ensure stable operation of the equipment. The CNC system can store multiple sets of processing parameters, and there is no need to edit them repeatedly for the next use, which improves operational efficiency.

Technical Specifications: Automatic Busbar Machine for High-Low Voltage Switchgear

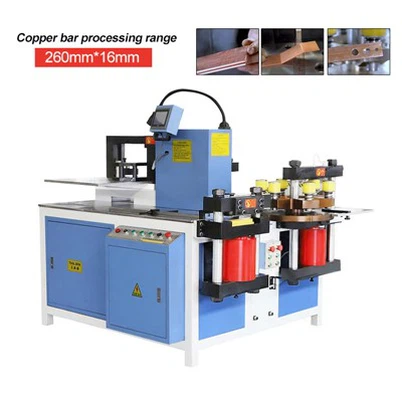

Model: DSCNC-50ZPS. Its processing range for copper busbars is 16X260mm, and its punching range is Φ4.3-Φ36mm. Its maximum nominal pressure is 800kN, and its main motor power is 3 x 5.5kW. Its Y-axis punching stroke is 1200mm, its X-axis punching stroke is 350mm, its X-axis shearing stroke is 1200mm, and its bending stop stroke is 1200mm.

Applications
This automatic busbar machine is suitable for high- and low-voltage switchgear, substations, bus ducts, cable trays, electrical switches, communications equipment, home appliances, shipbuilding, office automation equipment, elevator manufacturing, chassis and cabinet manufacturing, and other electrical equipment manufacturing industries.
