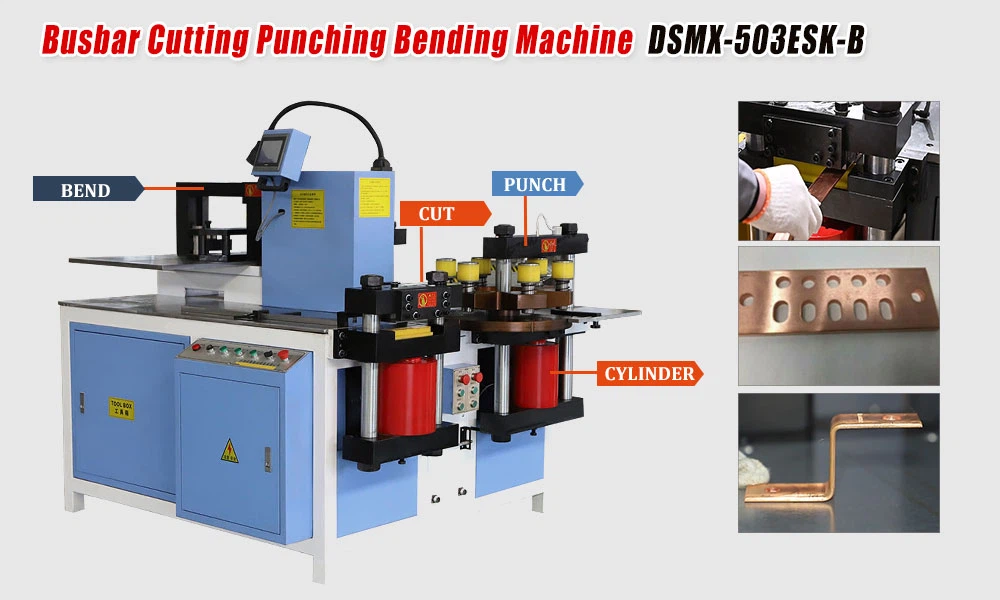

3 in 1 CNC Copper Busbar Machine

The punching station is equipped with a six-station rotary workbench, and an eight-position turntable can be customized according to customer needs. The workbench is made of high-strength ductile iron, which has excellent wear resistance, shock absorption and structural stability, and fundamentally reduces the loss of the mold under high-speed operation and high-frequency impact. The mold-changing-free design is a highlight. Through the intelligent mold changing system, operators do not need to manually disassemble and replace the mold, which effectively reduces the risk of misoperation caused by frequent mold changes, and avoids possible collision damage to the mold during disassembly and assembly, significantly improving production efficiency and mold life. In addition, the integrated turntable relies on precise processing technology to ensure that the mold maintains extremely high concentricity after installation, so that the punching accuracy is always maintained within a very small error range, ensuring the consistency and interchangeability of the hole positions of the components, especially suitable for mass production and automated production lines.

This structural design is based on the principle of mechanical balance. The symmetrical distribution of the double columns provides stable support, effectively disperses stress during the shearing process, and avoids cross-sectional defects caused by uneven force. With advanced shearing technology and precision tooling, the processed cross-section is as smooth as a mirror, uniform, without any burrs, and the surface is smooth and delicate, reaching or even exceeding industry standards. This high-quality shearing effect not only greatly reduces the subsequent grinding process, reduces labor costs and processing time, but also ensures the high precision and high quality of parts, providing perfect initial materials for downstream production links, and is widely used in precision manufacturing fields with strict requirements on cross-sectional quality.

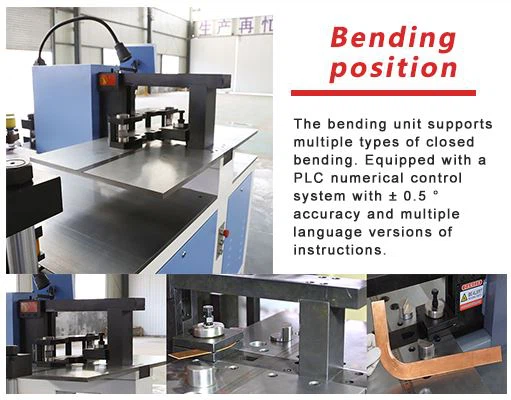

The bending station adopts a closed structure design. This unique structure effectively isolates external interference factors and ensures the stability and consistency of the bending process. In flat folding and embossing bending operations, the closed structure cooperates with the high-precision transmission system and pressure control system to achieve uniform and stable bending force output, making the bending angle accurate and the surface texture clear and beautiful. At the same time, the equipment has extremely high repeat positioning accuracy, and can ensure the high uniformity of bending dimensions regardless of the number of products produced in batches. The innovative design of the double-layer workbench is a major breakthrough. It realizes three-station parallel operation. Operators can perform bending operations of different processes at different stations at the same time, which greatly improves production efficiency and reduces equipment idle time. It is particularly suitable for flexible production needs of multiple varieties and small batches.

Equipped with German Siemens PLC control system, full CNC bending angle control, human-machine interaction and precise setting, angle error is almost negligible; storage memory function, common parameters and processes can be called with one key, and production is efficient and accurate. Each workstation can be set to automatically shut down independently to save energy and reduce consumption; parameter fine-tuning function, adapt to multiple production scenarios, flexible and convenient operation, to meet diverse production needs.
