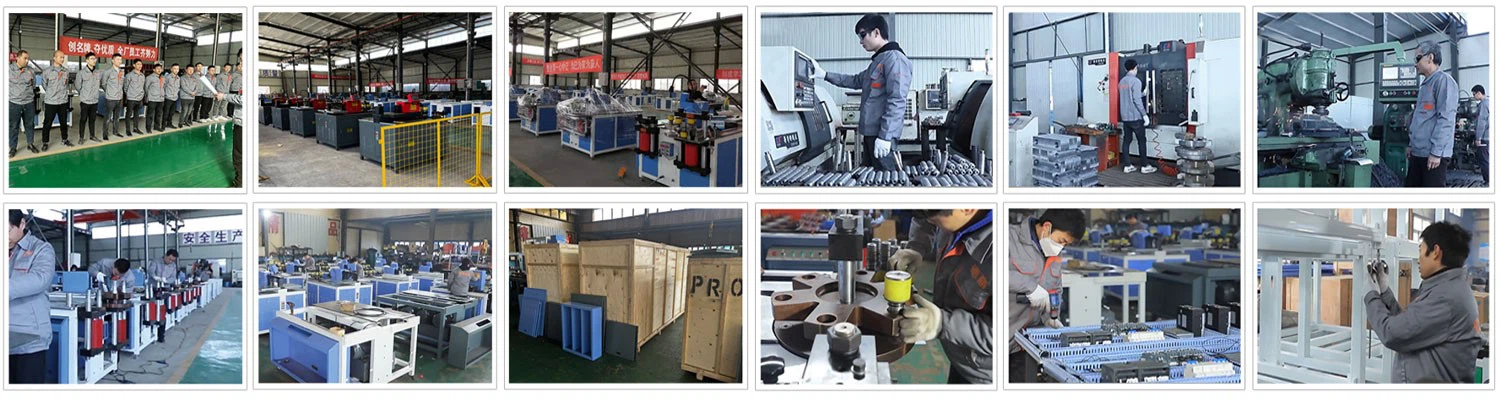

We are honored to introduce ourselves to you. We are a well-known busbar processing machine manufacturer in Jinan, Shandong, China. We strictly follow ISO system production requirements and safety standards for production and processing. We are exporters, manufacturers and suppliers. This machine has three units: punching, shearing and bending. The punching unit adopts a turret structure, and the bending unit adopts a closed structure. The three functions can work simultaneously. The maximum processing thickness of this machine is 16mm.

Send Inquiry

Description

Product Introduction

Bending busbar machine is a special aluminum and copper busbar processing equipment for the power, high and low voltage electrical appliances, and busbar duct industries. It integrates punching, cutting, bending and other functions, and has embossing, twisting, flattening, and crimping functions. The machine can perform punching, cutting, and bending at the same time or separately.
1. The punching unit adopts a turret type, which can be equipped with 6 molds at a time to improve efficiency.
2. The shearing unit adopts a flat edge shearing method, without excess material, and the workpiece surface is flatter and smoother.
3. The punching and shearing units adopt a horizontal processing method, which is flexible and convenient to operate.
4. The bending unit adopts a horizontal bending method. By changing the mold, flat folding, vertical bending, and bending of various complex shapes can be achieved. The PLC numerical control system is used for bending, and the operation is precise and faster.

Product Details

1. One layer of large plate, 200mm thickened tabletop, strong bearing capacity
2. Second layer of large plate, 35mm thickened plate
3. Φ60 hard shaft high temperature quenching hardness reaches 55 or above, more wear-resistant
4. Ductile iron integrated turret with six or eight stations optional
5. Shear pressure increased by 50 tons cylinder (large shear force and flat cross section)

6.Services provided according to customer needs: change size, color, logo, motor, language
Remarks: Punching unit overall tabletop cylinder total diameter 150mm/ shear cylinder total diameter 200mm
, copper bar punching die have passed fatigue test, 5000 holes punched continuously without failure, speed 0.2min/hole, minimum hole diameter φ3.2 maximum hole diameter φ30.

The copper bar bending unit adopts Siemens PLC system with an accuracy of ±0.5°, and system descriptions can be provided in English, Russian, Thai, Vietnamese and other versions. The minimum processing range of the bending unit is 3mm copper bar thickness, width and length 20mm.

Main configuration

Bending Busbar Machine：DSMX-303ESK-B

Workbench size()：layer:1888*1350*20,Second floor:600*360*60

Machine weight(kg)：1380

Motor quantity(KW)：3*4

Working voltage(V):380

Oil pump quantity (Mpa):3*31.5

Control method:PLC+bending angle CNC

Total motor power(KW):12

Single shear:15×160

Flat bend: 15×160

Vertical bending: 12×120

Maximum punching: Φ32(Thickness≤10mm), Φ25 (Thickness ≤ 15mm)

Shearing/Punching/Bending Maximum output force(KN)：350

Operation and Sample

Cutting Operation

Set the cutting length parameters on the busbar processing machine according to the required length.
Send the straightened copper busbar into the cutting device, start the cutting button, and accurately cut the copper busbar into the required length.

Punching Operation

Bending busbar machine determine the position and size of the punching holes on the copper busbar according to the needs of electrical connection.
Place the cut copper busbar on the punching die, align the punching position, start the punching device, and punch out the holes that meet the requirements.

Bending Operation

Determine the bending angle and radius of the copper busbar according to the requirements of electrical installation.
Place the copper busbar on the bending die, and bend the copper busbar by adjusting the angle and pressure of the bending die to achieve the required shape.
