Busbar automatic bending positioning machine DSCNC-50ZH This product has three processing stations: stamping, shearing, and bending, and is designed with three independent hydraulic systems. The punching, cutting, and bending stations can work simultaneously. The punching station uses servo motors and PLC to control the punching coordinates, achieving continuous positioning and punching of porous workpieces with high efficiency and accuracy. The cutting station automatically controls the cutting block size through servo motors and PLC, which is convenient and efficient. The bending station controls the bending length through servo motors, automatically locates the material blocking position, and can achieve program positioning of multiple angles and bending positions.
Description
Products Description
Bus bar machine china the DSCNC - 50ZH busbar automatic bending positioning machine is a state - of - the - art bending unit featuring servo - driven material - blocking equipment. This advanced machine integrates three essential processing stations: stamping, shearing, and bending. To ensure the smooth and stable operation of each processing stage, it is equipped with three independent hydraulic systems. The remarkable design allows the punching, cutting, and bending stations to work simultaneously, leading to a substantial boost in processing efficiency.
At the punching station, servo motors, in tandem with PLC control technology, precisely regulate the punching coordinates. When dealing with multi - hole workpieces, it can execute highly efficient and accurate continuous positioning and punching operations, guaranteeing both the precision and speed of the punching process.
The cutting station, too, makes use of servo motors and PLCs. This combination enables the automatic control of the cutting - block size. As a result, the operation becomes more convenient, and the processing efficiency is remarkably enhanced, effectively reducing processing time.
The bending station depends on servo motors to precisely control the bending length and automatically determine the material - blocking position. It can accurately position at various angles and different bending positions as per the program settings, thus catering to a wide range of bending requirements. This high - performance busbar machine is now available for sale.
Equipment technical parameters
Main Technical Parameters: DSCNC-50ZH
Max. Shearing Force (KN)：800 KN
Max. Width (MM)：260 mm
Max. Thickness (MM)：16 mm
Max. Punching Force (KN)：500 KN
Punching Diameter Range：Φ4.3-Φ36
Punching Width：260 mm
Punching Thickness：16 mm
Max. Bending Force (KN)：500 KN
Max. Width (MM)：260 mm
Max. Thickness (MM)：16 mm
Max. Width (MM):200
Servo motor (1 set, bending servo)
Out Dimension(mm)：1980 x 1710 x 1670 mm
Motor Power(KW)：3X5.5 KW
Machine Weight(KG)：2350 KG
Bending Stop Stroke(mm)：1200 mm
Power Requirements (V/F)：380V,220V,415V Customizable
Device Function
Copper busbar machine function
&&&The bending tool adopts a closed - type bending structure, which ensures a more uniform processing effect when performing planar bending and embossing operations. This not only enhances the quality of the processed products but also remarkably improves the repeat positioning accuracy during mass production. This high - precision feature allows for consistent and reliable manufacturing, reducing errors and waste, and ultimately contributing to higher - efficiency production processes and better - quality end - products.

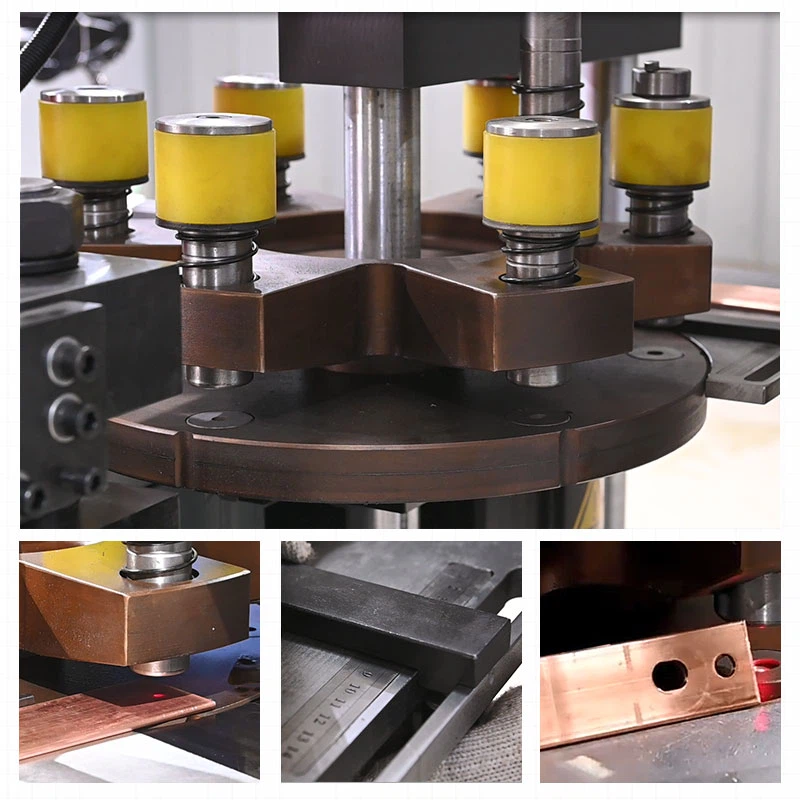

&&&The punching tool comes with the option of either a six - position or an eight - position turntable, allowing users to make a choice based on their specific requirements. These turntables are crafted from high - quality ductile iron, offering robust performance. One of the key advantages is that there's no necessity for mold replacement. This not only minimizes the likelihood of misoperations that often occur due to frequent mold changes but also effectively reduces the mold damage rate.
Moreover, the turntable is an integrally machined component. This design ensures the perfect centering of the upper and lower molds, significantly enhancing the mold's concentricity. As a result, the punching tool can maintain stable operation over an extended period, enjoying a substantially long service life and providing reliable performance for various punching tasks.

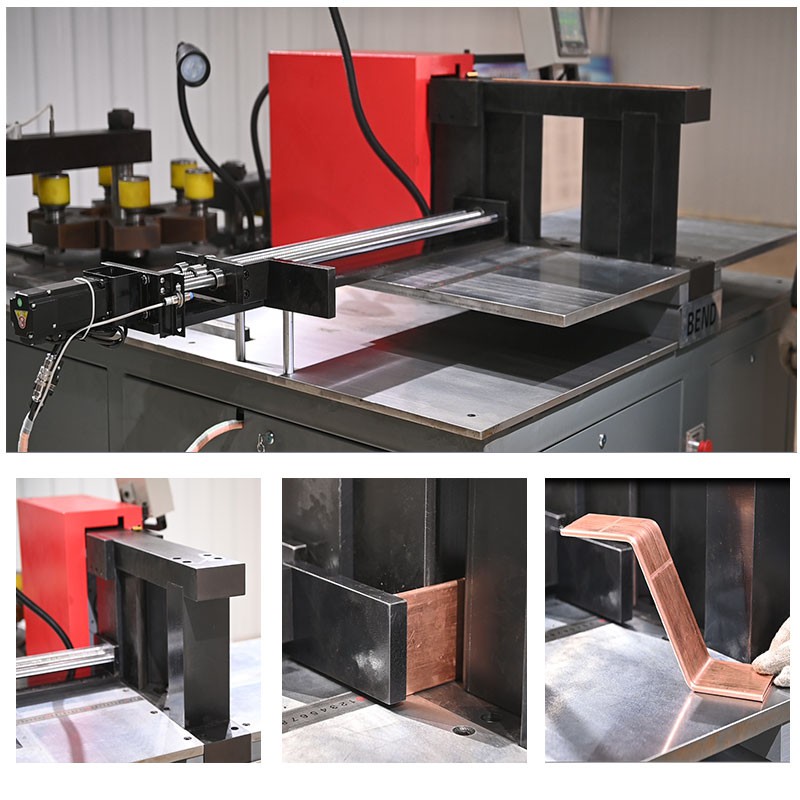

&&&The shearing tool adopts a double-column shearing structure, featuring a smooth cross-section, no waste material, no burrs, no corner collapse, and a smooth and burr-free edge.
Servo motor material blocking
**** Automatic positioning function
Copper bus bar bender the PLC control adopts Siemens' complete computing system, which achieves CNC control through the cooperation of PLC and displacement sensors. The bending is more accurate, and the equipment automatically calculates the cutting length, bending angle, and bending point.The operation is simple and easy to use.
**** Servo stopper control system

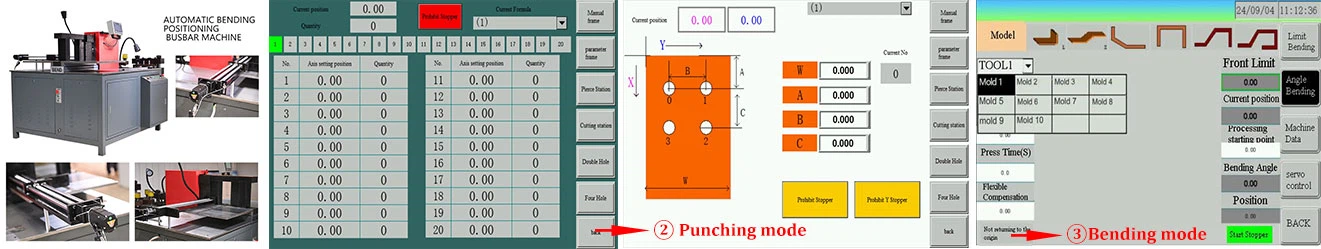

① Cutting mode:
1)Set the same length to cut multiple pieces
2)Set different lengths to cut multiple pieces and single pieces of different lengths.
② Punching mode:Automatic positioning and punching Settings
③ Bending mode:Automatic positioning bending instructions
Product packaging
Busbar machine china the use of wooden crates to package busbar processing equipment has significant benefits in multiple aspects:
Superior protective performance: Wooden boxes have a certain thickness and strength, which can effectively buffer vibrations, collisions, and impacts during transportation. Busbar processing equipment is usually more precise and contains various components and electronic parts inside. The protection of wooden boxes can prevent deformation of the equipment shell, loosening or damage of components due to external forces, ensuring that the equipment is intact during transportation. For example, during long-distance sea transportation, wooden boxes can withstand the vibrations caused by waves and prevent equipment from being damaged.
Good moisture resistance: Wooden boxes can be treated for moisture resistance, such as laying moisture-proof paper or film inside the wooden box. Busbar processing machines are mostly made of metal materials, which are prone to rusting in humid environments, affecting equipment performance and service life. Wooden boxes treated with moisture-proof measures can effectively block moisture in the air, creating a dry storage and transportation environment for equipment and ensuring that it does not become damp or rust.
Convenient handling and loading/unloading: The size and shape of the wooden box can be customized according to the shape of the busbar processing machine equipment, making it easy for forklifts, cranes, and other handling equipment to operate. At the same time, the wooden box can also be equipped with handles or lifting rings for easy handling, which facilitates manual handling, improves loading and unloading efficiency, and reduces labor and time costs.
