Press Brake For Bussbar

Main Technical Parameters:

DSMX-803ESK Press Brake For Bussbar

Puncing:                                                                      Bending:                                Out Dimension:2050*1600*1650

Max.Puncing Force (KN)：800                                                          Vertical Bending                                Power:3 x 5.5kw

Punching Diameter Range (MM);Ø4.3-Ø36                                       Max. Thickness (MM):10                    CNC Precision:

Max. Thickness (MM):20                                                                    Max. Width (MM):100                         Bending Precision:±1°

Max. Width (MM):300                                                                         Horizontal Bending                           Repeat Bending Precision:±0.3°

Shearing/Cutting:                                                        Max. Width (MM):20

Max.Shearing Thickness(KN):20                                                        Max. Width (MM):300

Max. Shearing Width (MM):300                                                          Twisting Bending

                                                                                                             Max. Thickness (MM):20

                                                                                                             Max. Width (MM):200

                                                                                                             Max. Bending Force (KN):800

Press Brake For Bussbar: Cutting/Bending/Punching Introduction

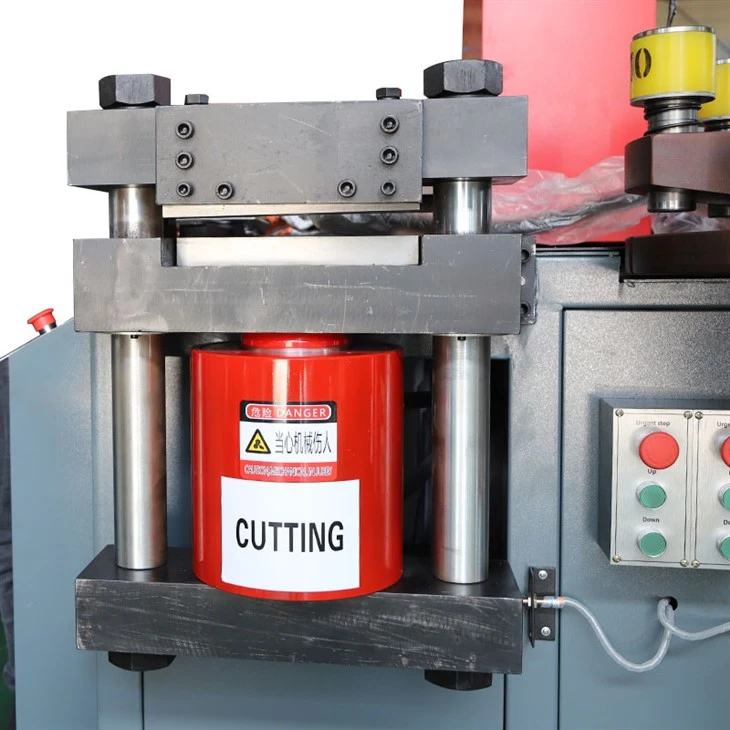

1.CUT--Double-column shearing structure

Busbar cutting machine the shearing station adopts a double-column flat shearing structure, with no waste,no burrs, and no collapsed feet.

2. Punching - tooth-shaped six-die integrated turntable

(1) Three positioning methods: laser positioning/coordinate axis positioning/positioning pin, which makes it easy to find the hole center on the punching machine

(2) Six sets of punching die installation turntable, no need to frequently change the die

(3)All copper bar punching molds have passed fatigue testing, with 5000 continuous holes drilled without any faults, at a speed of 0.2 minutes per hole with a minimum diameter of 3.2 and a maximum diameter of 30.

3.Bending - Siemens system control

(1) Bus cutting machine PLC numerical control system is used, which makes bending more precise and can complete vertical bending/edge bending (horizontal/plane bending)/Z-shaped bending/U-shaped bending/embossing/twisting bending, etc.

(2) Just enter the data and the machine will run automatically.

The company introduction is as follows：

Main Market: South America , Eastern Asia , Southeast Asia , Middle East , Africa , Worldwide

Business Type: We are a professional manufacturer of busbar processing equipment

Brands: Jinan Deshang CNC Equipment Co., Ltd

Year Established: 2012

Annual sales quantity: over 2000 units

The factory covers an area of 2000 square meters, including a construction area of 1000 square meters. It currently has more than 20 processing equipment. Deshang CNC is a company that combines production and trade to achieve independent research and development, production, sales, and after-sales service of products.

                                                                                            Press Brake For Bussbar

ISO

CQ

CE

CO

GPSR

Utility Model Patent
