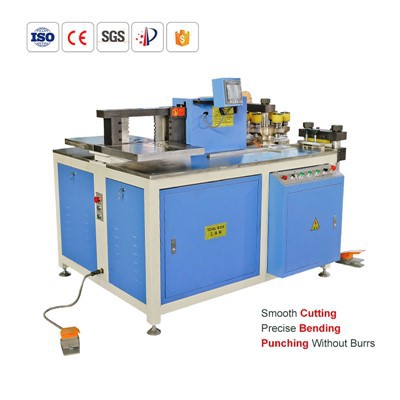

Servo Positioning CNC Busbar Machine

The DSCNC-50ZH servo positioning CNC busbar processing machine is emerging with its excellent performance, and flexibility is one of its outstanding advantages. This processing machine is a versatile one, which can easily handle various tasks such as punching, shearing, bending and cutting. No matter what size and shape of busbar, it can be accurately processed. ​
From a production perspective, it has greatly broadened the scope of busbar processing. Under its operation, busbars of different specifications can be quickly and accurately shaped into the required style, providing efficient support for industries such as electrical equipment manufacturing, and reducing the cost of enterprises due to the need for multiple equipment to process different processes separately. ​
Not only that, this processing machine is very friendly to operators. Even individuals with limited experience can get started in a short time. The simple and easy-to-understand operation interface, combined with a clear and clear instruction flow, makes the processing process easy and convenient. This means that companies do not need to spend a lot of time and energy to train professional operators, reducing the cost of manpower training, and allowing new employees to quickly get to work and improve overall production efficiency. The servo positioning CNC busbar processing machine is reshaping the production pattern in the field of busbar processing with its flexibility and ease of use. ​



Model No.：DSCNC-50ZH

Colour：grey

Max. Punch Force：500kn

Max. Cut Force：800kn

Max. bending Force：800kn

Punch Diameter：4.3- 36mm

Max. Thickness：16mm

Max. Width：260mm

Vertical Bend Max. Width:10 x 100

Max. Angle (Degree):90°

Dimension(MM):2080*1710*1670

Power motor(KW):3*5.5

►Servo motors help bending stations achieve precise and complex positioning

In the bending process of the Servo Positioning CNC Busbar Machine, the bending station uses a servo motor to control the position of the automatic positioning block, which is a revolutionary breakthrough that brings unprecedented convenience and efficiency to busbar processing. ​
Busbar processing is often extremely difficult when it involves tasks with multiple angles and multiple bending positions. Traditional equipment requires operators to manually and repeatedly adjust the positioning block, which not only consumes a lot of time and energy, but also makes it difficult to ensure positioning accuracy, and is prone to human errors, resulting in uneven product quality. However, with the application of servo motors in the bending station, this problem has been solved. ​
The precise control capability of the servo motor can accurately control the position of the automatic positioning block. The operator only needs to enter a detailed bending program in the control system, and the servo motor will quickly and accurately move the positioning block to the specified position according to the instructions. This means that with one program setting, accurate positioning of multiple angles and multiple bending positions can be easily achieved. For example, when producing customized distribution cabinet busbars, the busbars have complex shapes and need to be bent at multiple angles at different positions. With the help of the positioning block controlled by the servo motor, the processing machine can operate in an orderly manner according to the program, accurately completing the positioning of each bend, greatly improving the processing efficiency and reducing the time wasted due to frequent manual adjustments. ​
From the perspective of accuracy, the servo motor can control the position accuracy of the positioning block within a very small error range, ensuring that the position of each bend is accurate. This is crucial to ensure the quality stability of busbar products. Whether it is right-angle bending, multi-section folding line bending, or arc bending, it can strictly meet the design requirements and greatly improve the consistency and yield rate of the product. At the same time, due to the reduction of manual intervention, the defective rate caused by human negligence is reduced, saving production costs for the company.

►The PLC control system adopts a complete set of Siemens computing systems

The Siemens PLC control system used in this equipment is the "intelligent brain" of the entire equipment. It has a long-standing reputation in the field of industrial automation for its powerful computing power and stable performance. It has high-speed data processing capabilities, can respond to various signals during the operation of the equipment in real time, and quickly make precise control decisions. When the bending equipment is running, the PLC can accurately control the actions of each actuator according to the preset program and real-time collected data to ensure the stability and accuracy of the bending process. ​
