Products Description 3 In1copper busbar machine is a device used for punching, shearing, bending and other processing operations of copper busbars (busbars). The device is also called copper busbar processing machine or busbar processing machine. It is a special equipment that integrates...

Send Inquiry

Description

Products Description

3 In1copper busbar machine is a device used for punching, shearing, bending and other processing operations of copper busbars (busbars). The device is also called copper busbar processing machine or busbar processing machine. It is a special equipment that integrates multiple functions such as punching, shearing, bending, etc., and is used for copper busbar (busbar) processing operations. This equipment has multiple models and two types: closed busbar machine and open busbar machine are widely used in transformer factories, high and low voltage switchgear manufacturing and other occasions where copper busbar processing is required. The copper busbar machine not only has standardized functions, but can also be customized according to customer needs to meet processing needs in different scenarios.

► Closed busbar processing machine：Equipment color can be customized

The closed equipment has good rigidity and high precision, and is suitable for high-precision copper busbar processing.

Closed busbar machine ► Open busbar processing machine：Equipment color can be customized

Open equipment is easy to operate and maintain

Equipment usage:

Main functions：
3 In1 copper busbar machine is versatile and can perform a series of efficient operations on copper and aluminum busbars. It can easily cut and accurately punch holes, whether it is round holes, long holes, or special hole shapes such as chamfered R angles and chamfered right angles. In addition, the machine also supports a variety of bending operations such as flat bending, vertical bending and U-shaped bending, which greatly meets the needs of copper and aluminum busbar processing in different scenarios.
Application field：
The copper busbar machine is mainly used for secondary processing of busbars in high and low voltage switchgear, transformer manufacturing and other power equipment in the electrical industry. It can accurately bend straight copper busbars according to preset angles and sizes.
Brand：DESG
Equipment type：Mechanical equipment
Features:High processing accuracy: Using CNC technology, it can process copper busbars with accurate shapes.
High production efficiency: It can greatly improve processing efficiency and shorten processing cycle.
Simple operation: Usually only one operator is needed to complete the entire processing process, reducing labor costs.

Workstation introduction

Introduction to the three-station shearing/punching/bending equipment

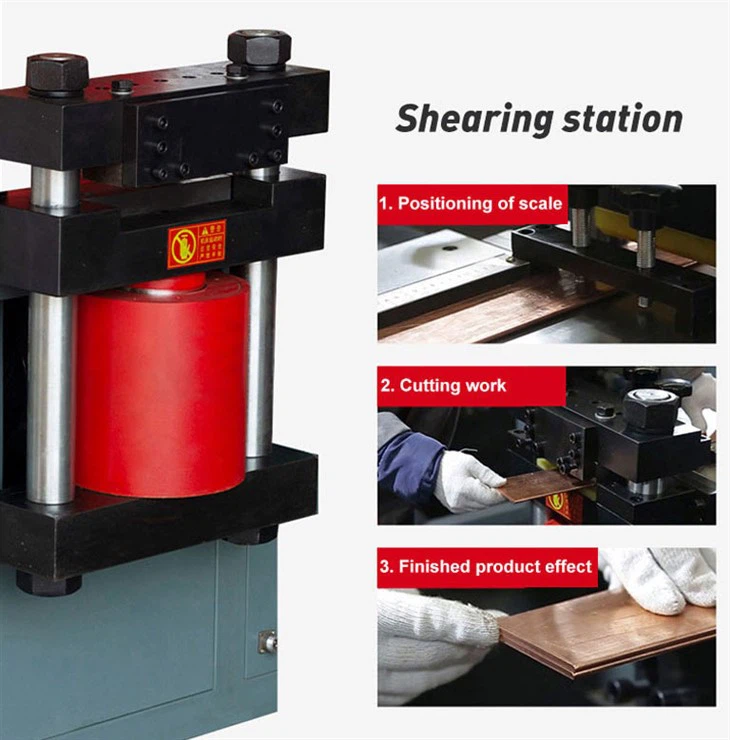

Structural principle of cutting equipment

Cutting equipment often adopts two classic structures: double-column double-knife or flat knife shearing. Taking the double-column double-knife shearing structure as an example, the upper knife and the lower knife are installed in a vertical and parallel state, and the hydraulic drive system is operated to provide stable power for busbar shearing and accurately complete the shearing action.

Structural principle of Punching equipment

There are many structures of punching equipment. The most common one is the six-station large turret overall structure, which can realize more complex station conversion. There are also four-station or eight-station overall turntable structures. The four-station turntable structure is relatively simple, with a single punching task, and can quickly and efficiently complete the processing of specific hole types; the eight-station overall turntable has strong functionality and can meet the processing needs of various hole types.

Structural principle of Bending equipment

The equipment has a closed structure, horizontal operation, and can flexibly change molds to achieve various bending methods such as flat bending, vertical bending, and U-shaped bending. It has strong versatility and can adapt to various processing needs. Its processing accuracy is high, and the CNC system accurately controls the bending angle, which can meet the high-precision bending requirements of busbars of different shapes and sizes.
