Cnc Workshop Busbar Machine
This busbar machine is equipped with three different processing stations for punching, cutting and bending operations. Controlled by an efficient programmable logic controller (PLC), it is a versatile solution for processing copper and aluminum busbars of different specifications. During operation, the interface operator simply selects the relevant processing station. A wide range of processing tasks can be performed on copper and aluminum bars quickly with great convenience. These tasks include shearing busbars to the required length, punching various types of holes (such as round holes and long holes), performing flat bends, vertical bends and U-bends to shape busbars according to different requirements. In addition, it can handle embossing to add functionality or aesthetics, flattening operations to ensure a smooth surface, twisting to create specific shapes, and pressing cable connectors to establish secure electrical connections.
Description
Products Description
Get to know our model: DSMX-303ESK-B Cnc workshop busbar machine, which is a technological innovation that will completely change your copper and aluminum busbar manufacturing business.
**Versatile Processing Stations**
Equipped with three essential processing stations - punching, cutting, and bending, this machine is a one - stop solution for all your busbar processing needs. Each station is meticulously crafted from high - quality 45# forged material, ensuring durability, precision, and long - term reliability.
**Intelligent PLC Control**
Powered by advanced Programmable Logic Controller (PLC) technology, the machine offers seamless operation. The PLC control system allows for easy programming and precise control over every processing step. This not only enhances the efficiency of the manufacturing process but also ensures consistent quality output.
Equipment parameters
Main Technical Parameters: DSMX-303ESK-B
1. Maximum nominal pressure: 800KN
2. Maximum processing size for shearing: 20*300mm
3. Punching processing range: Φ3.2～35mm
4. Maximum processing size for flat bending: 12×300mm
5. Minimum distance between U-shaped parts (40mm)
6.Voltage:380V(Customizable 220V/415V)
7.Motor Power:3x4KW
8.Machine Weight:1380KG
9.Dimensions:1900x1350x1420Maximum width: 260mm
Product Features
**Wide Range of Processing Capabilities**
When it comes to processing copper and aluminum busbars of various specifications, this machine truly shines. With just a simple selection of the corresponding processing station, you can swiftly and conveniently execute a diverse array of operations.

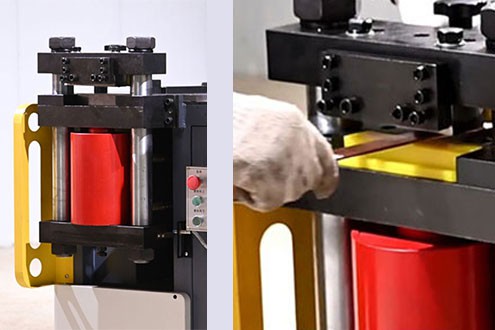

**Cutting Operations**
Busbar cutting machine the cutting unit is configured with a double-column, double-knife shearing structure. During operation, it exhibits excellent vertical guidance, and its concentricity is significantly superior to that of the screw combined with a separate block structure. The upper and lower knives are installed vertically and in parallel. This design ensures a flat cut, eliminates waste, and maintains its shape even after extended use, preventing deformation over time.
**Bending Operations**
Busbar bender machine from flat bending, vertical bending, to complex U - bending, the bending station offers the versatility to shape busbars according to your design needs.
In addition, the machine can perform operations such as embossing for adding unique patterns or identification marks, flattening to ensure a smooth and even surface, twisting for creating specialized forms, and pressing cable joints to establish secure electrical connections.

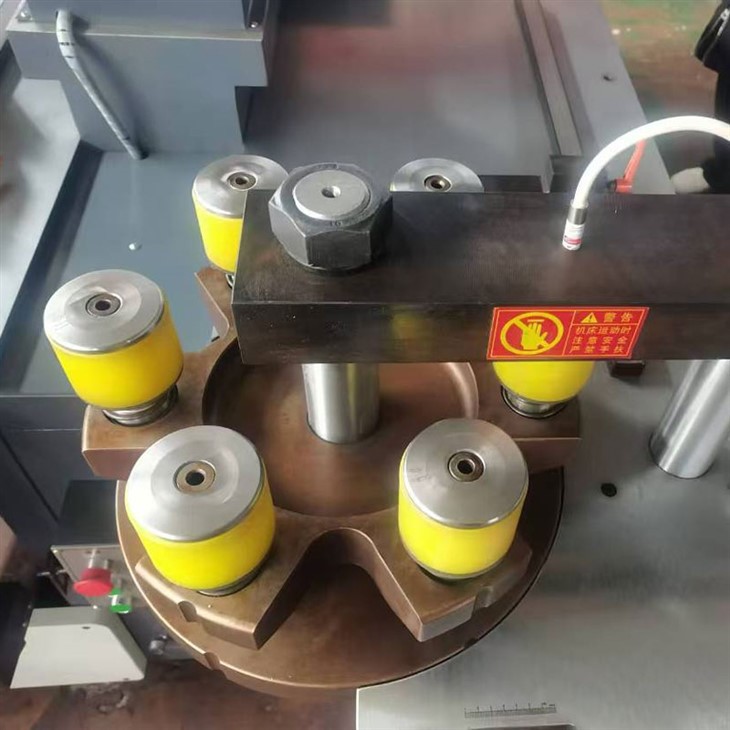

**Punching Operations**
Whether you need round holes or oblong holes, the punching station can handle it with ease. This flexibility allows you to meet the specific requirements of different electrical components.
In summary, Cnc Workshop Busbar Machine,our busbar processing machine, with its advanced features and robust construction, is the ideal choice for any business looking to optimize their busbar manufacturing process.
The bending unit of the equipment is equipped with Siemens PLC system
The bending function is divided into two bending modes: extreme bending and angle bending. Among them, angle bending is divided into 6 common bending schemes. Each bending scheme supports drawing parameter storage. Each time you process a drawing with the same parameters, you only need to call the last stored bending parameters without recalculating the input.
