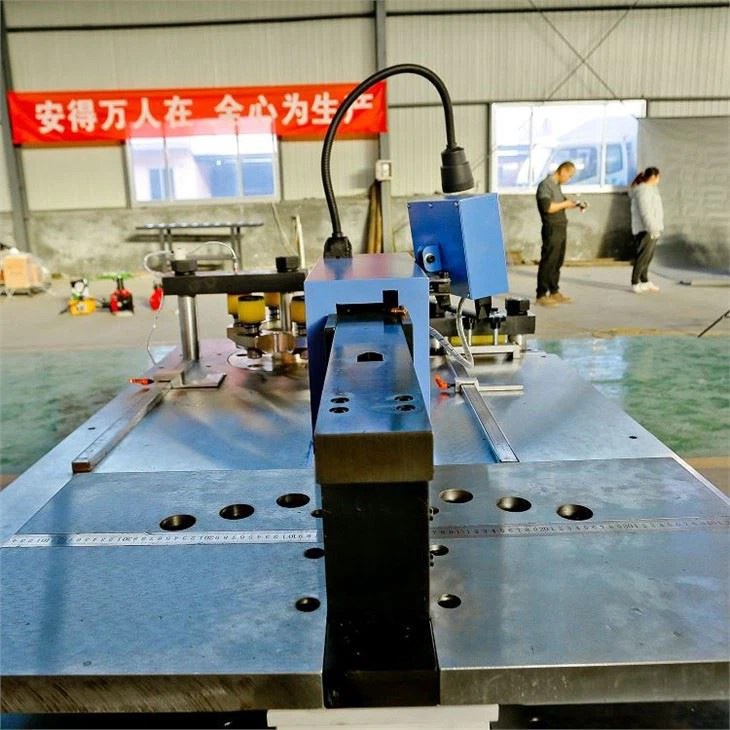

Busbar Punching Bending Machine
The dies mounting holes are proceeded by the CNC machining center, high precision. The bending angle can be NC control with save memory function, extremely convenient.
The machine adopts the one-on-one hydraulic supply, three oil cylinders, three oil pumps, no influence with each other.
1. Main driving motors
2. Hydraulic station
3. Electromagnetic valves and overflow valves

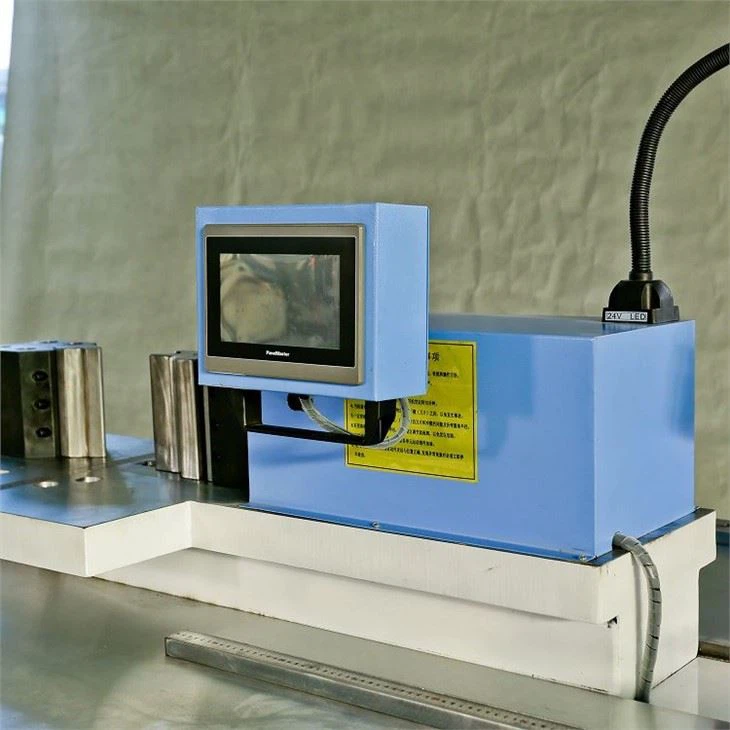

4. Touch screen
5. PLC and electrical cabinet
Description
Jinan Deshang CNC Equipment Co., Ltd. is one of the leading manufacturers and suppliers of busbar punching bending machine in China, featured by quality products and good price. Please rest assured to buy advanced equipment for sale here from our factory. We also accept OEM orders.
Main Feature
1. PLC control, more stable and reliable than traditional relay control, and can control the downwards time of shearing and punching, but also has automatic shutdown function.
2. The shearing unit is common double-blade type cutting, cutting edge is smooth without burr.
3. The dies mounting holes are proceeded by the CNC machining center, high precision. The bending angle can be NC control with save memory function, extremely convenient.
4. The machine adopts the one-on-one hydraulic supply, three oil cylinders, three oil pumps, no influence with each other.
Product Application
Application
This machine is special for processing aluminum and copper busbars used in electric power, high/low voltage electric apparatus and busway industries. It combines punching, cutting and bending units, and three units can work simultaneously.
Product Parameter
Model No. | DS-303SK-B | |
Colour | Blue | |
Punch | Max. Punch Force | 300kn |
Punch Diameter | ∅4.3—∅30mm | |
Max. Thickness | 15mm | |
Max. Width | 160mm | |
Shear Cut | Max. Cut Force | 500kn |
Max. Cut Thickness | 15mm | |
Max. Cut Width | 160mm | |
Horizontal Bend | Max. Punch Force | 300kn |
Max. Thickness | 12mm | |
Max. Width | 150mm | |
Vertical Bend | Max. Width | 10 x 100 |
Max. Angle (Degree) | 90° | |
Dimension | MM | 1890*1350*1400 |
Moteur Power | KW | 3*4 |
Weight | KG | 1300 |
CNC Precision | Bend Precision | ±1° |
Repeat Bend Precision | ±0.2° | |
FAQ
1. What is your payment terms?
40% T/T deposit, 60% balance be paid before loading after good ready.
2. What is your minimum order quantity?
One set.
3. Are the all labels and instructions English?
Yes. Our labels, instructions and control system are all English.
4: How to get a accurate quotation from us?
A: Please provide us the details of material, max thickness and max width.
5: Can you do OEM service?
A: Yes, we can.
6: What's the shipping cost from china to your country?
A: We have reliable shipping agent to insure the safe convenient and time delivery.
7: Do you offer teaching & training?
A: Training at supplier's plant.
