Cnc Copper Bending Machine

The upgraded blue closed copper busbar processing machine saves time and effort. The punching die can punch 5,000 holes continuously without any failure, with a speed of 0.2 min/hole. The minimum hole diameter is φ3.2 and the maximum hole diameter is φ30. The bending unit adopts Siemens PLC system with an accuracy of ±0.5°. System instructions can be provided in English, Russian, Vietnamese and other versions.

Send Inquiry

Description

Products Description

►Main performance characteristics ：Model：DSMX-303ESK-B

Cnc Copper Bending Machine is a patented product independently developed by our company. Its innovative design brings revolutionary breakthroughs in the field of copper and aluminum busbar processing. Its core function is to efficiently process copper and aluminum busbars of different specifications. Users only need to switch the corresponding processing station to easily realize the integrated processing of shearing, punching and bending of copper and aluminum bars, greatly improving production efficiency and processing accuracy.

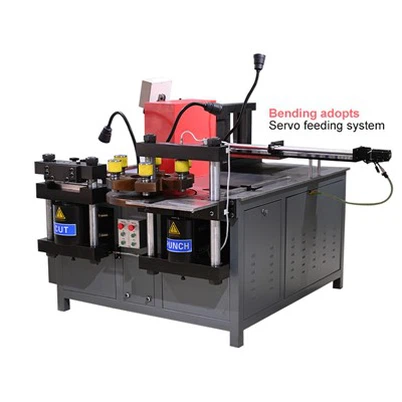

⑴ In terms of structural design, the shearing unit adopts an integral structure with scientific and reasonable force to ensure that the equipment remains stable and does not deform when shearing the copper bar; the punching unit is equipped with a turret-type mold library that can accommodate eight sets of punching molds to meet diversified processing needs; the bending unit angle CNC technology is easy to operate and has extremely high precision. In addition, the unique design of the double-layer workbench realizes the synchronous operation of three stations without interfering with each other, further optimizing the production process.

Bending-machine-cnc

⑵ In terms of technical configuration, the equipment is equipped with a PLC control system, which runs stably and accurately to ensure the reliability of the processing process; it is also equipped with an automatic oil filling and draining system to reduce labor maintenance costs and extend the service life of the equipment. Whether in the fields of electricity, electrical manufacturing, or new energy, CNC Copper Bending Machine can become an ideal choice for improving production efficiency with its high efficiency, precision, and intelligence.

PLC-control-system-1

Equipment hardware advantages

(1) The first layer of large plate is thickened by 20mm, and the tabletop has strong bearing capacity

(3) The Φ60 hard shaft is hardened at high temperature and the hardness reaches above 55, which is more wear-resistant

(5) The shear pressure is increased by 50 tons of oil cylinder (large shear force and flat cross section)

(2) The second layer of large plate is thickened by 35mm

(4) Ductile iron integrated turret with six or eight stations is optional,Turntable:400*47*135mm,Punching cylinder: total diameter 150mm

(6) The large frame of the equipment uses 60*60*5 (mm) square tubes, which are strong and stable

(7)Services available based on customer needs

Change size, color, logo, motor, language We serve customers worldwide.

Supplied Accessories

# Cnc Copper Bending Machine

Punching Tools:φ7,,φ9, φ11, φ13, φ17, φ21,φ13×18, φ17×21
Vertical Bending Tool:R80
Horizontal Bending Tools:R3,R5,R10
U Typy Bending Tool:Twist Dies
Oil Filler,Inner Hexagon Spanner;Hydraulic System Sealing
Foot Switches,Limit Switches
Punching Location Needle,Magnetic location block,Fuse Core

►Detailed introduction to the positioning method of the punching unit

1.Positioning pin positioning

Positioning pins make production and processing positioning more accurate

2.Double-speed ruler positioning

The punching station is equipped with a bidirectional positioning device, which is suitable for factory batch production and can achieve mechanical bidirectional positioning of the X-axis and Y-axis

3.Laser positioning
The marking is accurate, intuitive, practical, stable, easy to operate, and improves work efficiency
