Bending Copper Busbar
The main function is to process various specifications of copper and aluminum bus bars.
The punching, cutting, bending, embossing and other functions of the bus bar can be processed on the corresponding processing unit.
Place of Origin: China
Max punching strength: 500 KN
Max. thickness: 16 mm
Max .width: 260mm
Voltage: 220/380V /400V, 415v
Description
Product Details

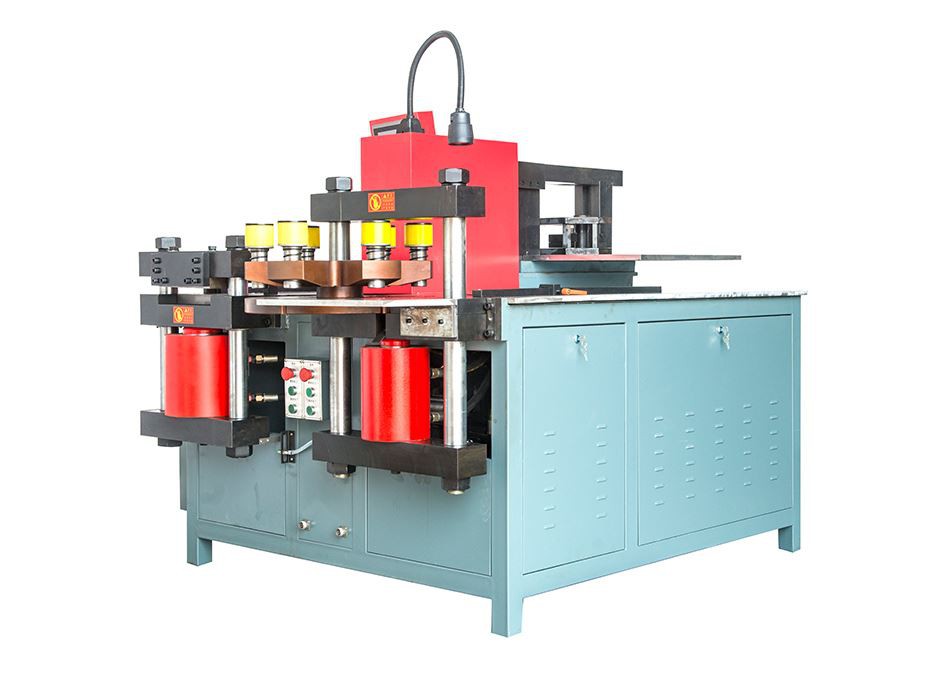

DS-303SK-K，DS-503SK-B ，DS-803SK-B Copper busbar cutting machine
The main purpose of the bus processing machine is suitable for high and low voltage switchgear, high and low voltage
complete sets, power transformers and other manufacturing industries. The main function is to process various specifications

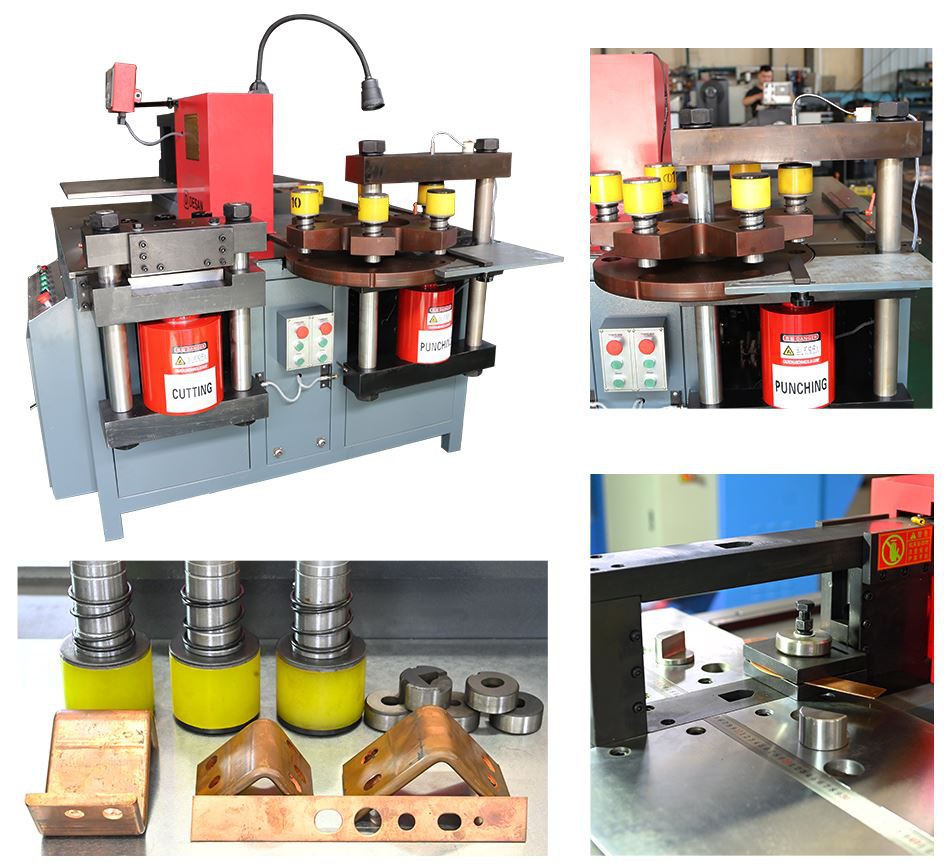

of copper and aluminum bus bars. The punching, cutting, bending, embossing and other functions of the bus bar
can be processed on the corresponding processing unit.
Advantages of Choice
Motor: Juli Weite (the export volume ranks first in the country), 100% pure copper motor, this motor has
the advantages of good stability, low noise and low failure rate.
2. Oil pump: Taiwan Xinhong Motor (the price is about 700 higher than the domestic motor).
Our oil pumps are gear oil pumps, and many other manufacturers are plunger pumps.
3. The solenoid valve overflow valve is made of Taiwan, with good sealing and long life.
4. Hydraulic tubing seals: three-layer steel wire high-pressure tubing.
 |  |  |
5. Fuel tank: The steel plate welded with internal phosphating treatment has a good anti-rust effect.

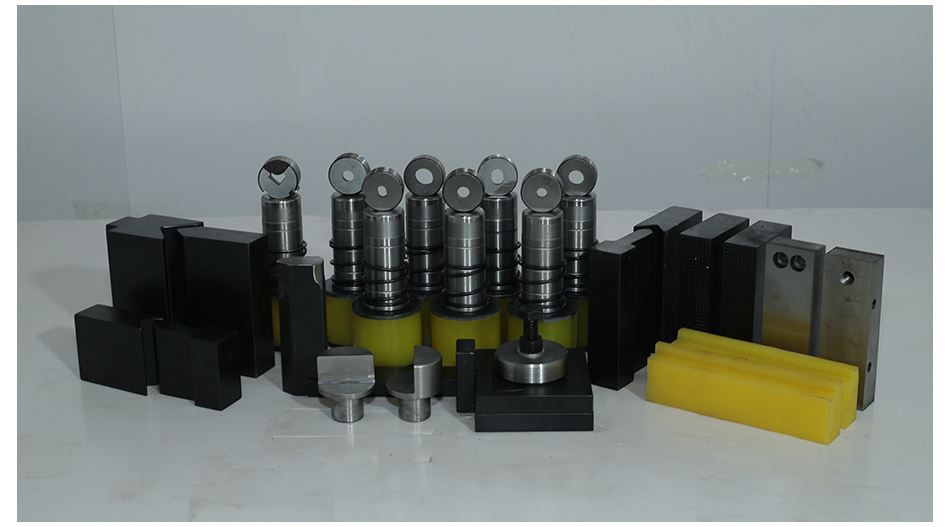

6. Mould: The punching and shearing mould is made of Luo 12 molybdenum and vanadium material to ensure
the service life of the mould. All the bending stations use 45# forging materials, quenching heat treatment,
flange treatment, perfect processing technology and reliable materials, so you will have no worries in the future use process.
7. Punching positioning: X, Y axis reverse positioning, high efficiency, high accuracy, suitable for mass production.
8. The shape of the equipment is sprayed with plastic, not ordinary spray paint.
9. The whole machine adopts Panasonic PLC control, which is more stable and reliable than traditional relay control.
The bending angle is directly input, the operation is simple, the angle is accurate and includes the memory function,
and the processing method is arbitrarily called.
Product Parameter
Function | Model | DS-303SK-K | DS-503SK-B | DS-803SK-B |
Punching | Max. punching force (kn) | 300 | 500 | 800 |
Punching diameter range (mm) | 4.3-30 | 4.3-36 | 4.3-36 | |
Max. thickness (mm) | 15 | 16 | 20 | |
Max. width (mm) | 160 | 260 | 300 | |
Shearing/Cutting | Max. shearing thickness (mm) | 15 | 16 | 20 |
Max. shearing width (mm) | 160 | 260 | 300 | |
Horizontal bending | Max. bending force (kn) | 300 | 500 | 800 |
Max. width (mm) | 160 | 260 | 300 | |
Max. thickness (mm) | 15 | 16 | 20 | |
Horizontal bending | Max. width (mm) | 100 | 120 | 120 |
Min. angle (Degree) | 90° | 90° | 90° | |
Out dimension | mm | 1900*1350*1400 | 1925*1560*1490 | 2050*1600*1650 |
Power | kw | 3x4kw | 3x5.5kw | 3x5.5kw |
Weight | Kg | 1350kg | 1950kg | 2350kg |
CNC precision | Bending precision | ±1° | ±1° | ±1° |
Repeat bending precision | ±0.3 | ±0.3 | ±0.3 |
Our Service
1. What is your payment terms?
40% T/T deposit, 60% balance be paid before loading after good ready.
2. What is your delivery time?
Within 15 business days after your paying.
3. What is your power supply?
It will depend on your local power supply and we will adjust for you.
4. What is your minimum order quantity?
One set.
