Bus Bar Bender Machine

DSMX-503ESK(three pumps, CNC bending operation, six-position turntable) has three processing stations that can be operated simultaneously: punching, shearing, and bending. Its bending process is controlled by Siemens PLC and is mainly used to process copper and aluminum busbars of different specifications. During operation, you only need to select the corresponding processing station to conveniently perform various processing on copper and aluminum busbars.

Send Inquiry

Description

Products Description

DSMX -503ESK is a Bus Bar Bender Machine, equipped with three pumps, with three processing stations for punching, cutting and bending, and can operate simultaneously. Its bending CNC operation is precise, and with a six-position turntable, it is more efficient. The bending unit adopts closed bending to ensure processing accuracy and stability.
The equipment provides two classic appearance options of gray and blue. If you have other color requirements, we also support customization. Whether in the power and construction industries, or in the manufacture of electrical equipment such as high and low voltage distribution cabinets and switch cabinets, DSMX -503ESK can rely on its powerful functions to excellently complete the processing tasks of copper and aluminum busbars, and is your right-hand man to improve production efficiency.

Basic parameters

1. Punching unit:
Maximum punching force: 500KN ,

Punching diameter (mm): Φ4.3～36
Maximum thickness: 16mm ,

Maximum width: 260mm
2. Shearing unit:
Maximum shearing force: 800KN ,

Maximum shearing thickness: 16mm
Maximum shearing width: 260mm
3. Bending unit:
Maximum bending force: 500KN,

Maximum bending width: 260mm
Maximum bending thickness: 16mm
4. Machine dimensions: 1925*1560*1490
5. Machine weight: 2000kg

Product Details

The Bus bar bender machine is mainly powered by a hydraulic system and uses various dies and cutters to process the busbar. For example, when shearing, the hydraulic system drives the shearing cutter to move up and down to cut the busbar; when punching, the hydraulic power makes the punch punch a hole on the busbar; when bending, the hydraulic device pushes the busbar on the bending die to bend.

1.Electric control box

The system uses Siemens PLC, Schneider full set of electrical accessories, equipped with relays, effectively preventing damage to the system electrical appliances

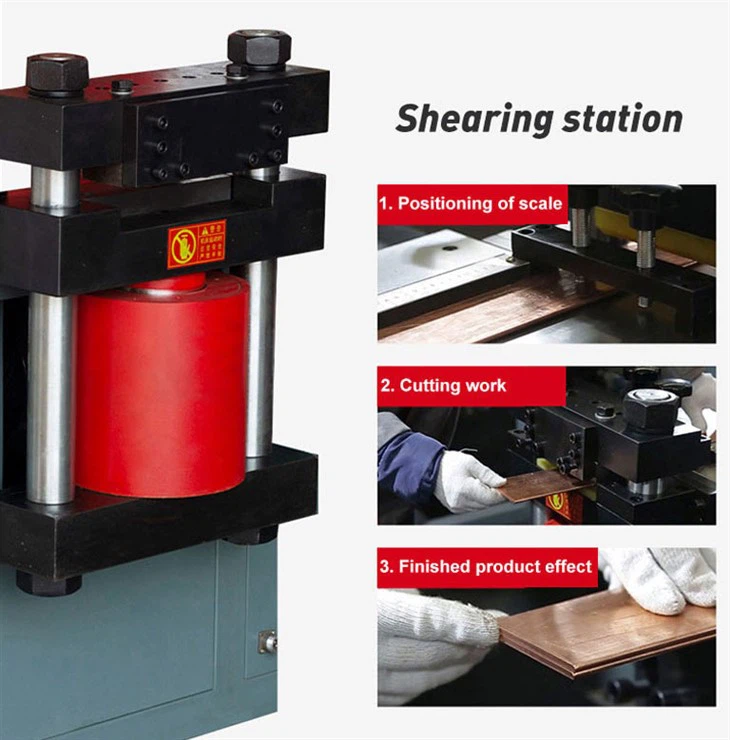

2.Shearing

The shearing unit is made of cast iron and has a thickened middle crossbeam, which is more durable. The shearing knife is used, and the shearing edge is smooth, without collapse and beautiful in appearance.

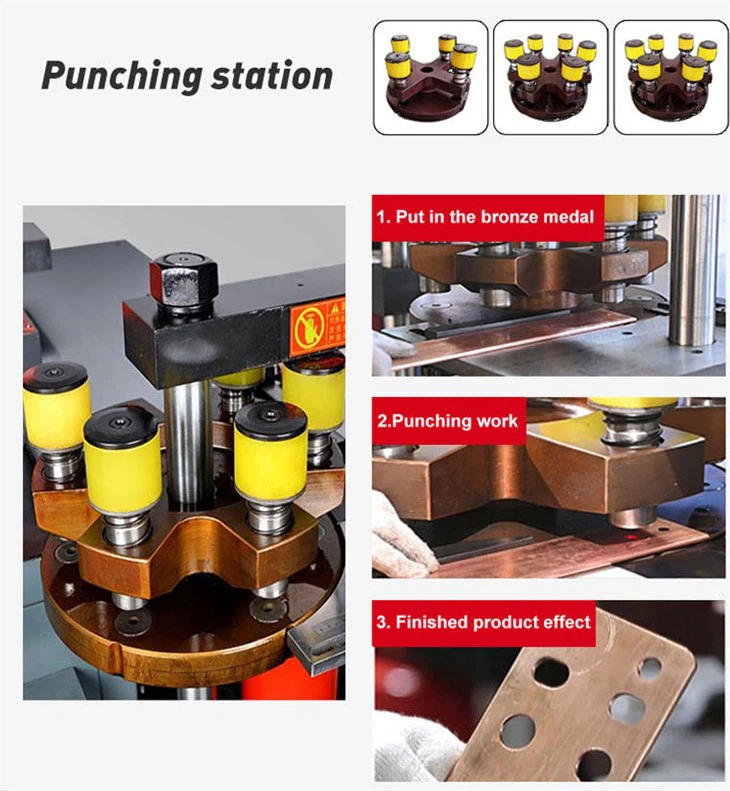

Punching

The punching unit adopts a toothed six-die integrated turret structure, which ensures the absolute centering of the upper and lower dies, good visibility, high strength, and workers do not need to change dies frequently.

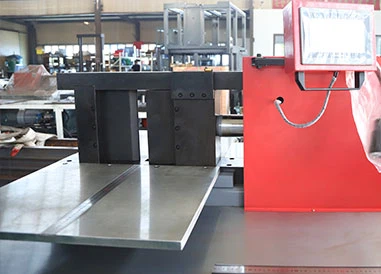

Bending

The bending machine adopts an independent workbench, closed bending has higher precision, touch screen control, and faster efficiency.

Each unit mold

PUNCHING DIE：can punch out various specifications of holes such as round holes and waist-shaped holes.

Punching die

BENDING DIE：can realize various bending methods such as flat bending, vertical bending, embossing, flattening, twisting, etc., and special models can be customized.

Bending mold
