Multifunction Busbars Machine Factory

Jinan Deshang CNC Equipment Co., Ltd. is one of the leading manufacturers and suppliers of multifunction busbars machine factory in China, featured by quality products and good price. Please rest assured to buy advanced equipment for sale here from our factory. We also accept OEM orders.

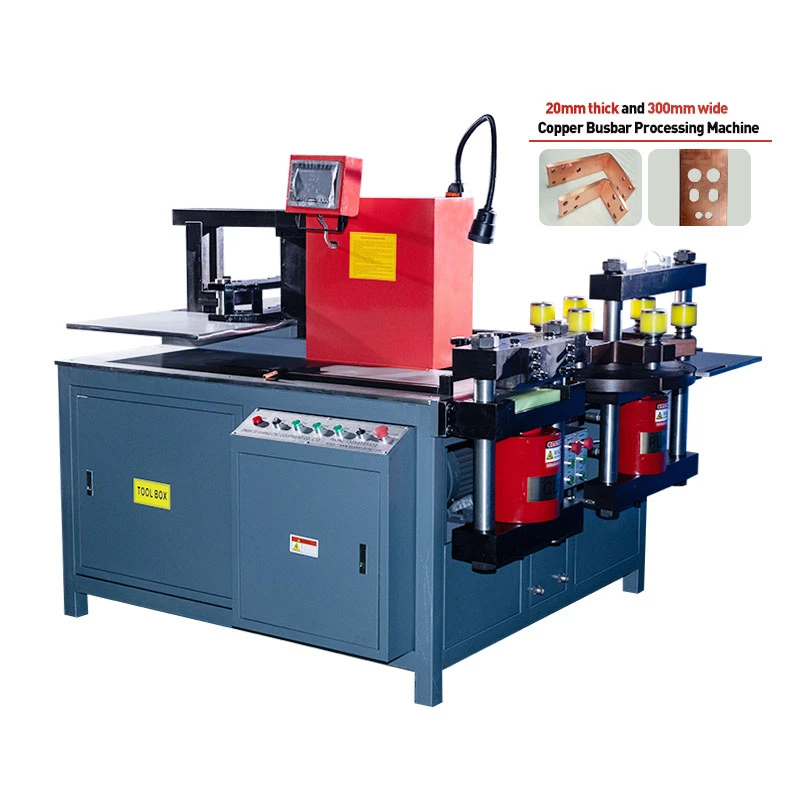

DESG is a multifunction busbars machine factory. It produces various models of copper busbar machines. The busbar processing machine is a multifunctional and efficient equipment equipped with three integrated processing stations: punching, cutting and bending. The equipment adopts advanced PLC control technology and is designed for accurate and reliable processing of copper and aluminum busbars of various specifications.
During operation, users can easily select the appropriate processing station to perform various processes seamlessly and quickly. These processes include cutting, punching (both round and long holes can be processed), horizontal and vertical folding, U-bending, embossing, flattening, twisting and crimping cable connectors. Each cutting, punching and bending station is made of high-quality 45# forged material to ensure durability and long-term stable operation.
In addition, we also provide comprehensive customization services according to the personalized needs of customers, including modifications such as size, color, logo, motor configuration and language settings to ensure that the equipment perfectly meets the unique needs of each customer.

At present, the processing capabilities of the DSMX-803ESK busbar processing machine are as follows:

● Punching station:

can punch copper-aluminum busbars with a thickness of 20 mm and a width of 300 mm. The punching specifications range from Ф4.3 to Ф36, and the maximum punching force can reach 800 KN.

● Cutting station:

can cut copper-aluminum busbars with a thickness of 20 mm and a width of 300 mm, with a maximum cutting pressure of 800 KN.

● Bending station:

can bend copper-aluminum busbars with a thickness of 20 mm and a width of 300 mm, with a maximum bending pressure of 800 KN.

Equipment components:

Touch screen, Bending unit, Siemens CNC system (customizable language)
Punching unit, Cutting unit, Schneider switch
Cutting unit
Model: DSMX-803ESK-B
Motor power: 3x7.5KW
Voltage: 380V
Machine weight: 2300KG
Dimensions: 2050x1600x1650

Features：

1. Shearing stations are neat
2. Punching - Toothed six-mode integrated turntable:
Three positioning methods, including laser positioning, coordinate axis positioning, and positioning pin, are convenient for finding the hole center on the punching machine. It can drill 5,000 holes continuously without any failure, with a drilling speed of 0.2 minutes/hole, and the minimum diameter that can be punched is 3.2 and the maximum diameter is 30.
Multifunction Busbars Machine Factory

3. Bending - Siemens system control:

(1) PLC numerical control system is used, which makes bending more precise and can complete vertical bending/edge bending (horizontal/plane bending)/Z-shaped bending/U-shaped bending/embossing/twisting bending, etc.

(2) Just enter the data and the machine will run automatically.

Bending dies and punching dies. Different dies can process different samples (customizable according to needs)

This equipment/process is extremely applicable to the processing of copper and aluminum bars, and can achieve diversified operations with exquisite craftsmanship. In the shearing process, the bars can be accurately cut off; in terms of punching, whether it is a round hole, an oblong hole, a square hole, or a complex special-shaped hole, it can be created with fine craftsmanship. In the bending process, the required angle and arc can be shaped; the embossing process can give the bar a unique texture; the flattening operation can change its cross-sectional shape; the twisting process can add a unique shape to the bar. All kinds of processing methods are available, fully meeting the complex processing needs of copper and aluminum bars of different specifications, and providing solid and powerful technical support for the field of metal product production.

◢ Punching /Bending samples can be customized ( Multifunction Busbars Machine Factory )
