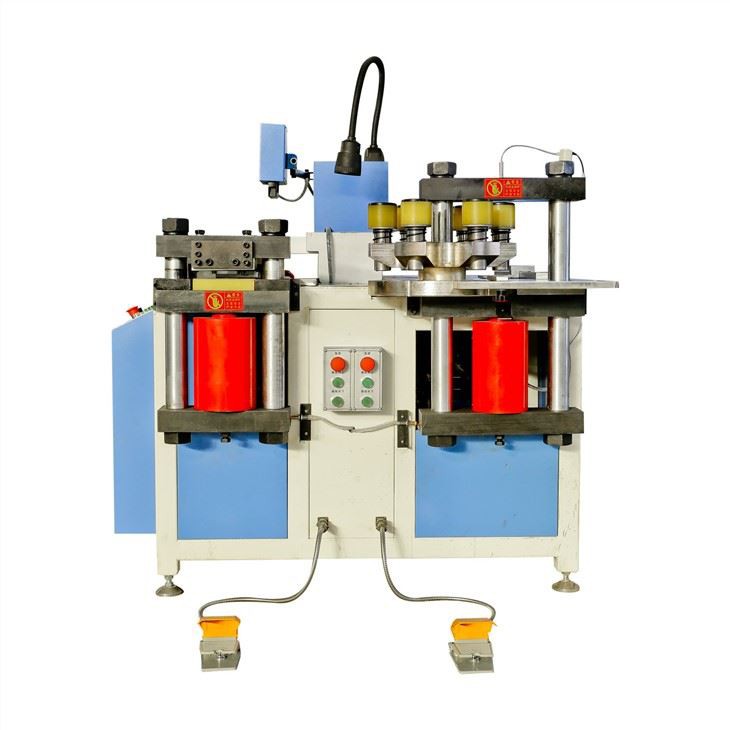

3 in 1 Busbar Bending And Punching Machine For Copper
Desan 3 in 1 Busbar Processing Machine can help you to process your copper bar.Such as cutting, bending, punching,embossing.It's easy to operate. Not only vertical bending but horizontal bending. With different kinds of molds they can process different kinds of operating. Also with 3 motors these three stations can work at the same time.
Description
| Technical Parameter | ||
| Function | Item | DSMX-303ESK-B |
| Punching | Punching Force | 300KN |
| Punching Range | ф4.3mm～ф30mm | |
| Max Thickness | 12mm | |
| Max Width | 150mm | |
| Cutting | Cutting Force | 500KN |
| Max Thickness | 12mm | |
| Max Width | 150mm | |
| Bending | Bending Force | 300KN |
| Max Thickness | 12mm | |
| Max Width | 150mm | |
| Out Dimension | mm | 1890*1350*1400 |
| Motor Power | KW | 3*4KW |
| Weight | Kg | 1300 |
| About CNC | We use Siemens PLC control which you can just enter the angle. The bending precision is ±1°and repeat bending precision ±0.5°.Three stations can be work at the same time. You also can only enter item's height ad width to produce the item you need.(as Z type blending) | |
More Detail Information
1. Cutting Station
With sharp scissors our cutting station can cut your copper bar easily. It won't waste your material and with smooth section. This station have button and foot switch. Help you easy to control this station.
2. Punching Station
Punching station has turret which can help you easy to change the molds. You don't have to take the molds one by one so it will extend the life of molds. For the positioning, Not only the needle but we also have laser and ruler which can help you easy to position the place need to punched.
If you need other shape of punching dies please feel free to contact with us. We can customized for you.
3.Bending Station
Horizontal Bending and Vetical Bending all can be processed by our 3 in 1 busbar bending and punching machine.
This part also adpots Simens PLC. Which can help you easy to caculate the bending type you need.
