800KN CNC Hydraulic Busbar Bending Punching Cutting Machine

Jinan Deshang CNC Equipment Co., Ltd. is one of the leading manufacturers and suppliers of 800kn cnc hydraulic busbar bending punching cutting machine in China, featured by quality products and good price. Please rest assured to buy advanced equipment for sale here from our factory. We also accept OEM orders.

DESAN CNC Equipment Co.,Ltd.

Model No.:DS-803SK-B

Function

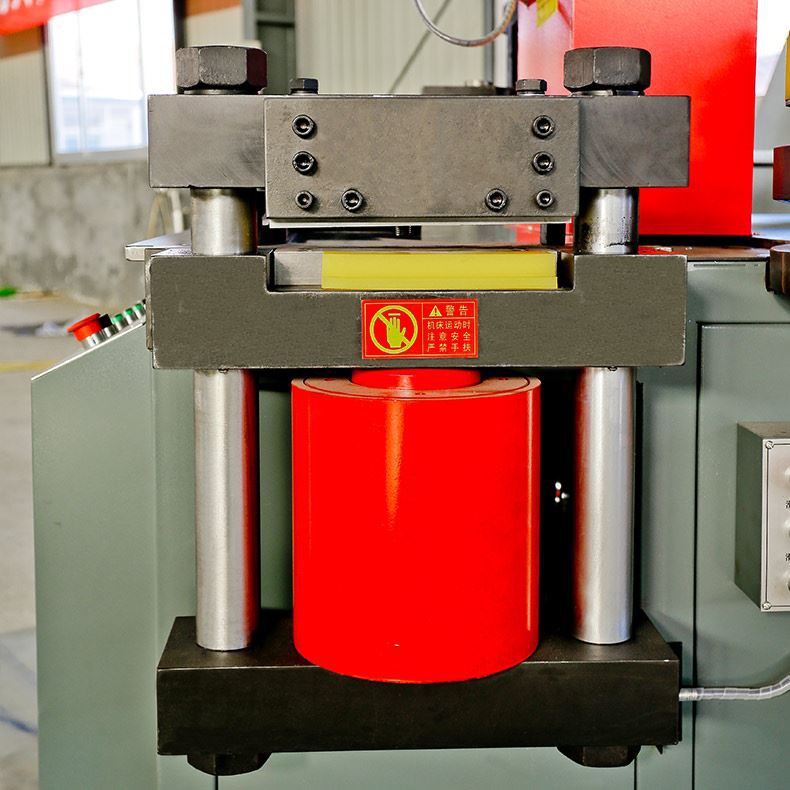

1. Punching

It has turret which is easy to help you to exchange the punching dies without moving out the dies. The structure of this turret make sue the upper die and lower die are always in the center.

2.Cutting

Our Cutting Stations adopts very sharp scissors. So the interface of the material which is processed is flat without droops burr or any waste.

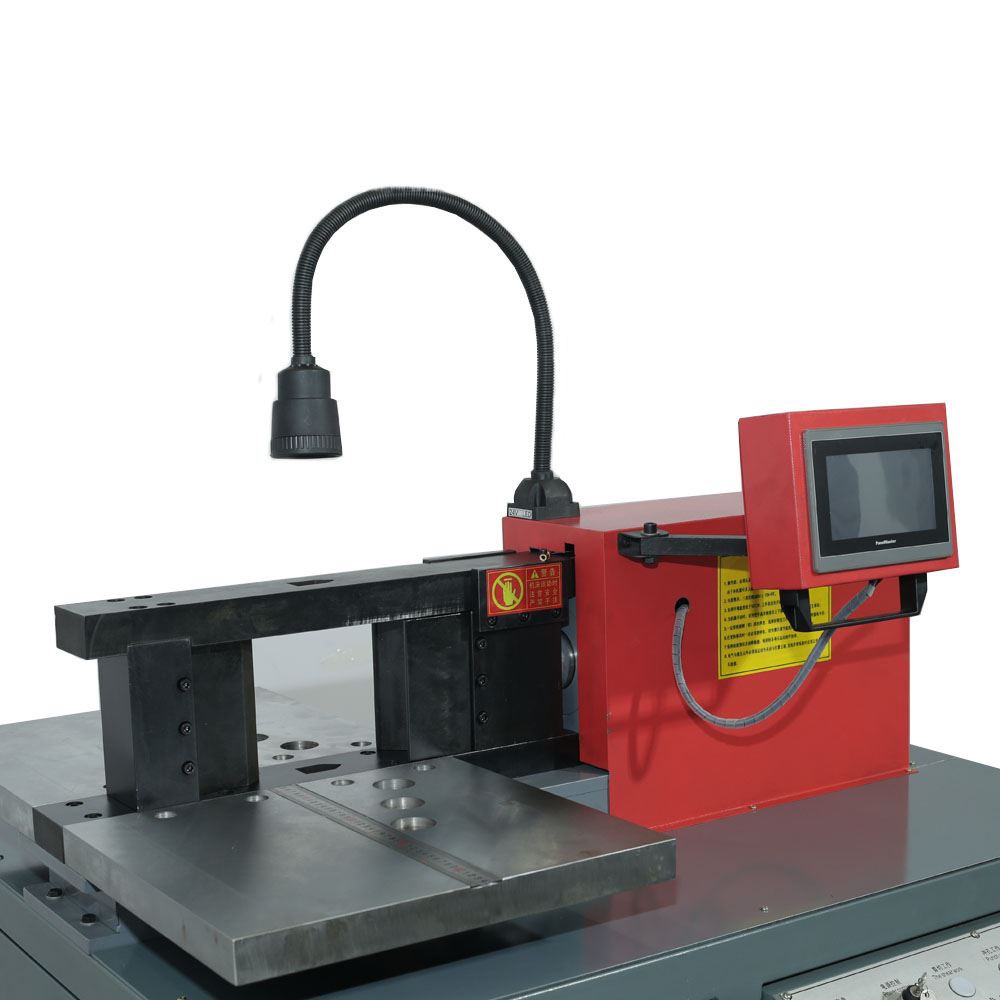

3. Bending

The horizontal bending and vertical bending processing can completed by changing the bending dies. The control system is Siemens PLC CNC Control system.

Technical Parameters

Function		Item			DS-803SK-B
Punching		Max. Punching Force			800KN
		Punching Diameter Range			ф4.3mm～ф36mm
		Max. Thickness			20mm
		Max Width			300mm
Cutting		Max. Cutting Force			800KN
		Max. Cutting Thickness			20mm
		Max. Cutting Width			300mm
Bending		Horizontal Bending		Max Bending  Force	800KN
				Max  Thickness	20mm
				Max  Width	300mm
		Vertical Bending		Max Bending  Force	800KN
				Max  Thickness	10mm
				Max Width	100mm
Out dimension				2050mm*1600mm*1650mm
Motor Power				3*5.5KW
Weight				2300Kg
About CNC	We use Siemens PLC control which you can just enter the angle.  The bending precision is ±1°and repeat bending precision ±0.5°. Three stations can be work at the same time.  You also can only enter item's height ad width to produce the item you need.(as Z type blending)

Sample Shows & Accessories

Company Profile

The factory has CNC machining centers, CNC lathes, CNC milling machines, large swing arm drilling machines, large surface grinders, etc. We a technology-based enterprise dedicated to the development and production of electrical equipment and CNC sheet metal equipment, product quality assurance, and the company has set up quality inspection Team, each equipment is debugged to its best condition before shipment.
