Busbar Machine For Punching Cutting Bending
This equipment: punching, shearing and bending integrated design, occupies only 4.3 square meters, one investment to meet the full process, small and medium-sized workshops can also be easily placed，Maximum output pressure 800KN, fuel tank capacity 120L
Description
Products Description
# Busbar Machine For Punching Cutting Bending
This equipment is DSMX-303ESK-B: It has an integrated punching, shearing and bending design, occupies only 4.3 square meters, and can meet the full process in one investment. It can also be easily placed in small and medium-sized workshops. The maximum output pressure is 800KN, and the oil tank capacity is 120L, which can meet various processing needs of copper busbars.
Parameter Overview
# Detailed explanation of technical parameters of multifunctional busbar processing machine
1. Core configuration parameters
Power System: 380V three-phase motor, 4.0kW*3
Hydraulic System: Maximum output pressure 800kN, fuel tank capacity 120L
Control System: PLC programmable control system with 7-inch touchscreen
Overall Features: The frame is welded from 60*60 square tubes, the punching die is made of chromium-12 molybdenum-vanadium, the crossbeam is forged from 45# steel, the table is 200mm thick, and the motor is 100% pure copper.
The motor has good stability, low noise, low failure rate, and can punch 5,000 holes continuously without any problems at a speed of 0.2 min/hole. The minimum hole diameter isΦ3.2, and the minimum processing range of the bending unit is 3mm thick and 20mm wide.
2. Processing Capacity Parameters
Punching: Copper/Aluminum busbars, thickness ≤ 15mm, width ≤ 160mm, hole diameter error ≤ ±0.1mm, hole spacing error ≤ ±0.2mm
Shearing: Copper/Aluminum busbars, thickness ≤ 15mm, width ≤ 160mm, cut perpendicularity ≤ 0.5°, burr-free (burr height ≤ 0.05mm)
Bending: Copper/Aluminum busbars, flat bending: thickness ≤ 15mm, width ≤ 160mm, bending angle error ≤ ±0.5°, repeatability ≤ ±0.1mm
Auxiliary (Embossing/Flattening): Copper/Aluminum busbars, embossing: thickness ≤ 8mm, width ≤ 100mm; flattening: thickness ≤ 12mm, width ≤ 120mm. Clear and uniform embossing patterns, flattened surface flatness ≤ 0.1mm/m
3. Compatible Die Parameters
Punching Die: Hole Diameter: 6mm-35mm (customizable).

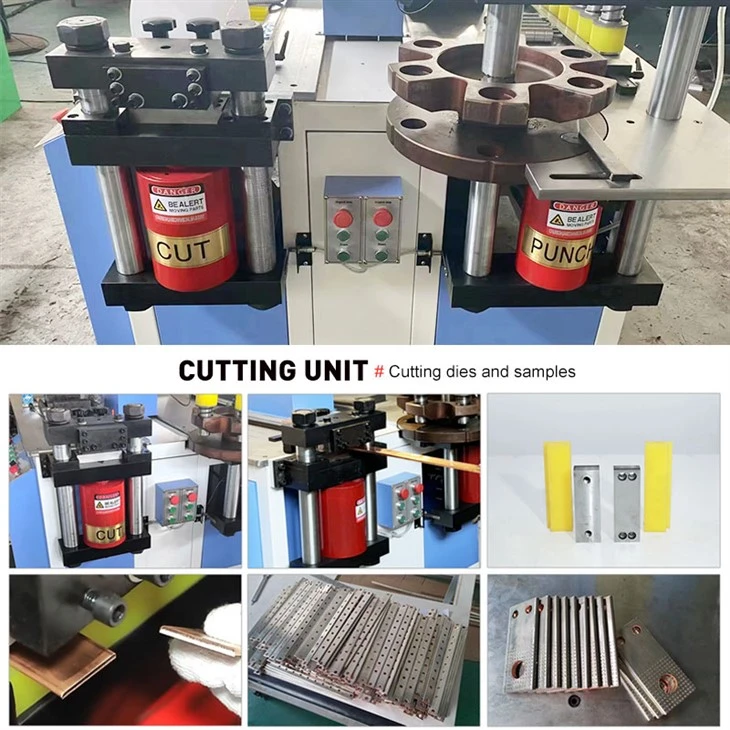

Shearing Die: Suitable for busbars up to 160mm wide, with a cutting edge hardness of HRC58-62. Made of Cr12MoV, the shearing die is wear-resistant and durable, requiring only two bolts for replacement.
Bending Die: Flat Bending Die Radius: 3mm/5mm/10mm. Precise die positioning eliminates the need for recalibration after installation, meeting bending requirements at varying angles and radii.busbar machine for punching cutting bending
