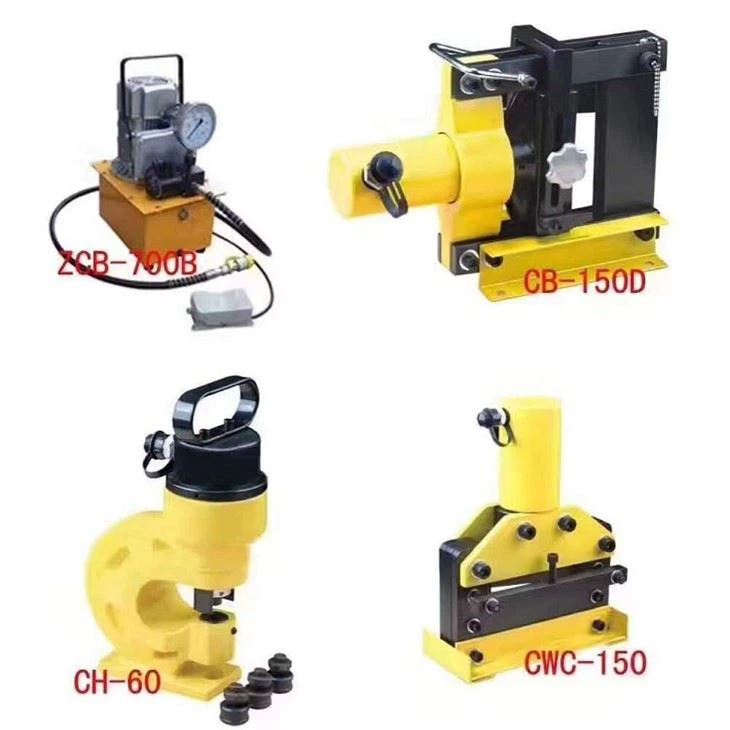

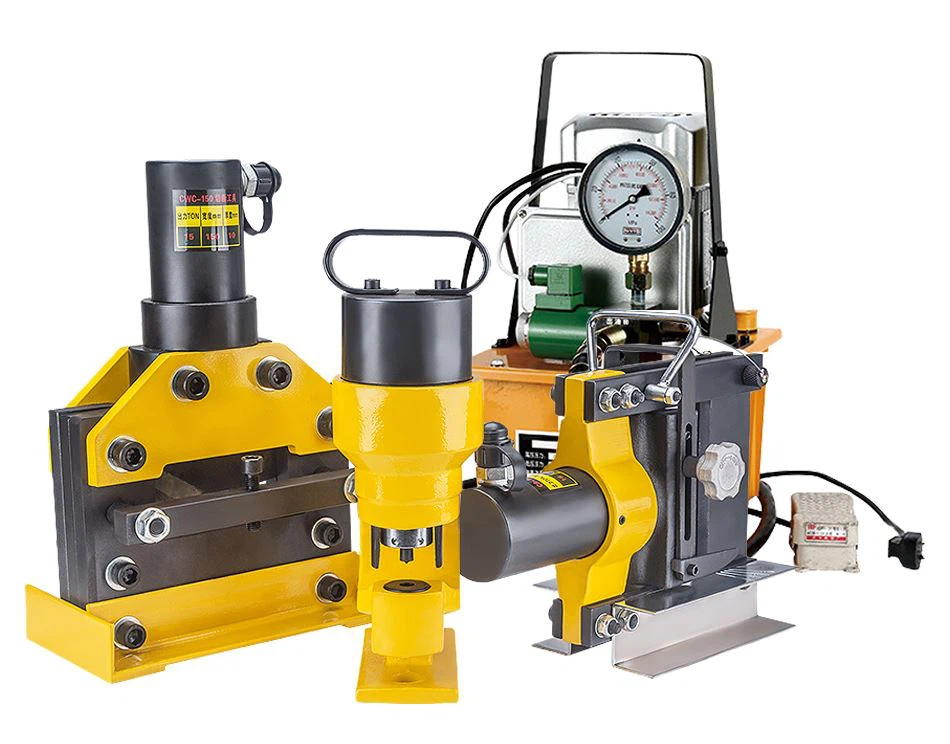

Portable Busbar Processor Machine Hydraulic Copper Cutting Bending Punching Tool

Voltage: 380V/220V Optional, 220V 50HZ for portable punching machine
Certification: ISO, ISO9001 and CE portable punching machine
Function: cutting punching bending

Send Inquiry

Description

Product Details

Portable Manual Hydraulic Busbar Punching Machine

Complete punching/cutting/bending functions

Hydraulic punching machine

This machine is a special processing tool for elbow punching of busbar installation. It is suitable for high-altitude operations, with fast speed, no burrs and accurate positioning.

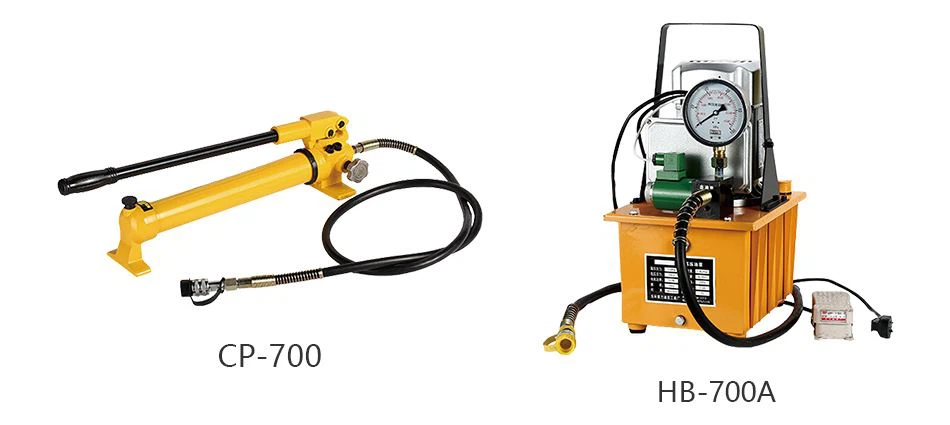

The punching accuracy does not deviate. Optional manual pump, foot pump, electric pump to use.

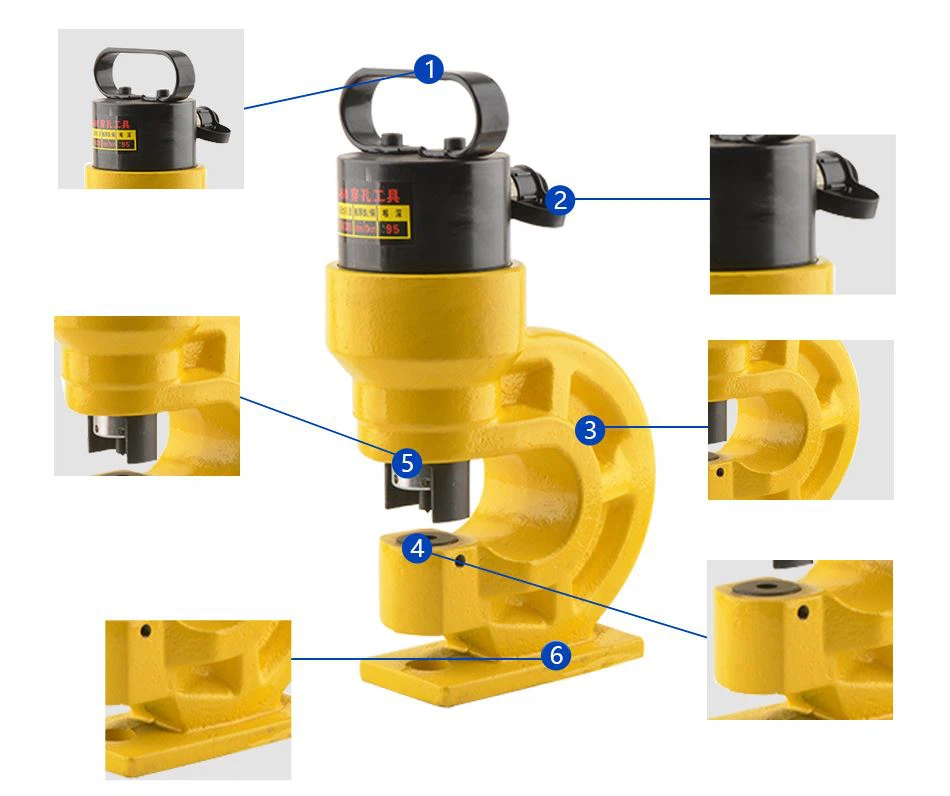

1. Portable handle 2. Dust cover + connector 3. Tungsten alloy body. 4. Lower punching die 5. Upper punching die 6. Stable base

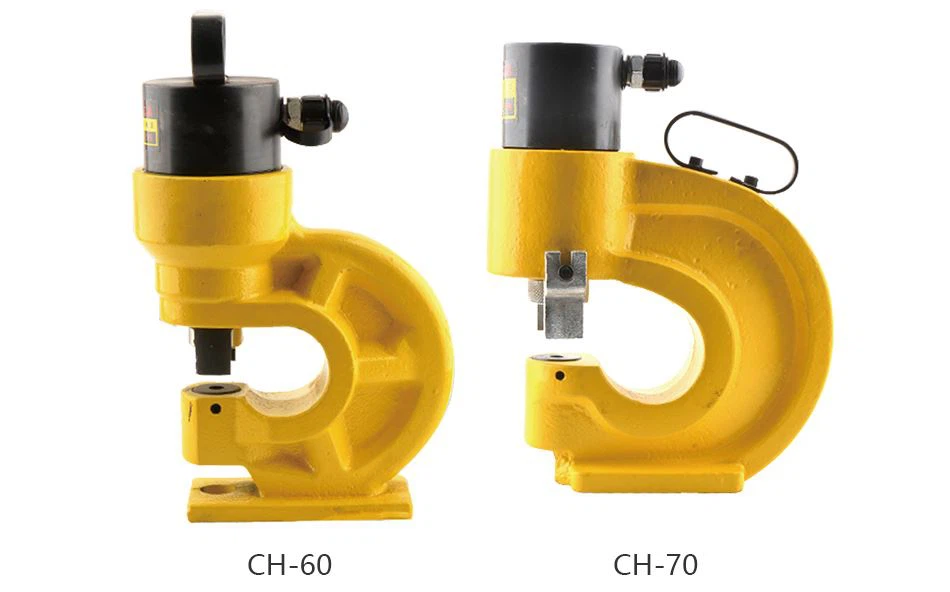

Model	Output(T)	Throat Depth(mm)	Weight(kg)	Mold Configuration
CH60	10	95	13.5	Φ10.5Φ13.8Φ17Φ20.5
CH70	15	115	28	Φ10.5Φ13.8Φ17Φ20.5

Hydraulic cutting machine

This machine is a special processing tool for cutting copper and aluminum bars. It has fast cutting speed, flat section without deformation, and unilateral cut without waste. It is suitable for cutting copper and aluminum bars on site or in a fixed and factory. Optional manual pump, foot pump, electric pump to use.

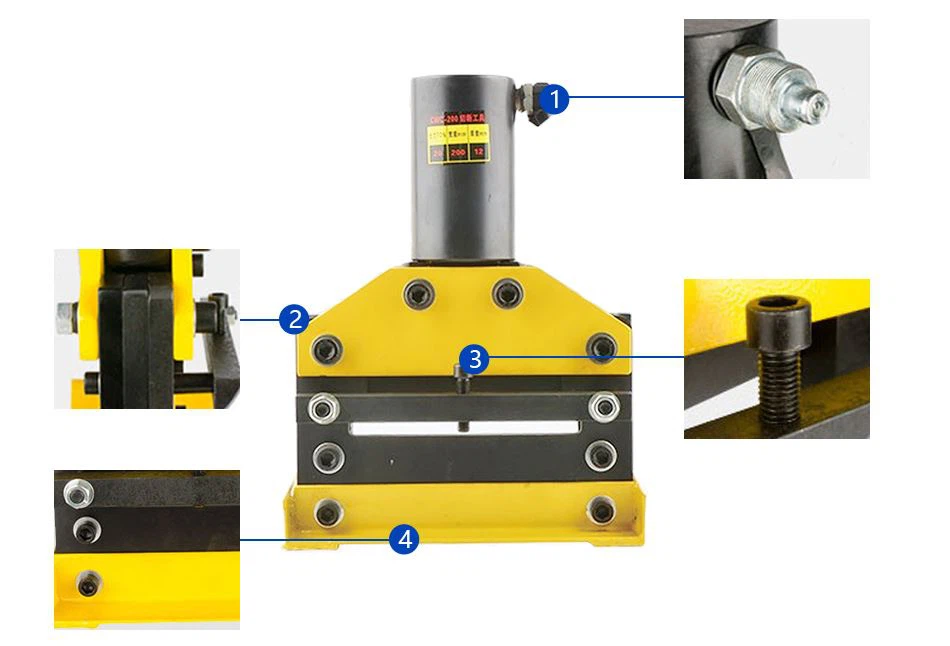

Male connector + dust cap

2. Blade display Cut fast and no waste noise.

3. Stabilize the base

4. Adjust the screw to keep the copper and aluminum row horizontal when cut

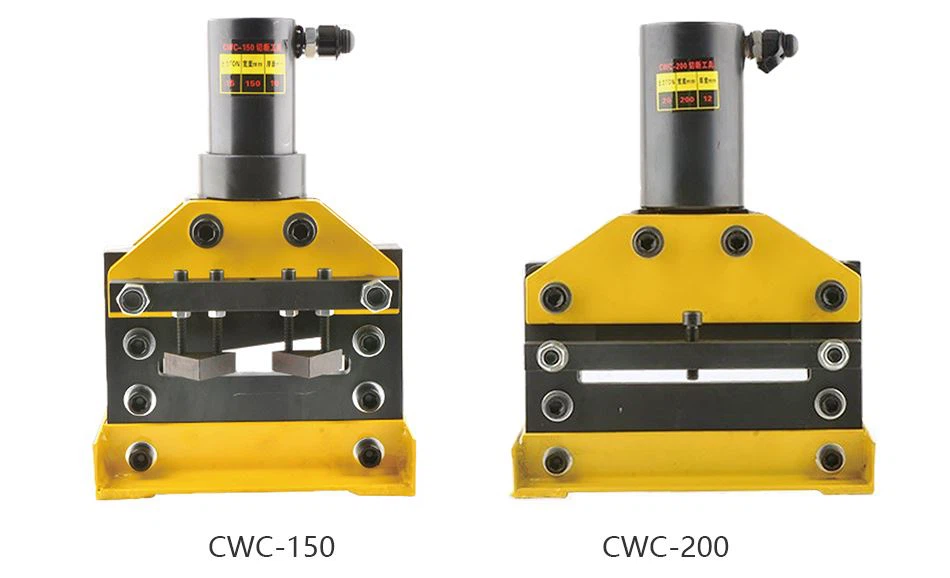

Model	Output(T)	Width(mm)	Thickness(mm)	Size(mm)	Weight(kg)
CWC-150	15	150	10	410x275x180	26
CWC-200	20	200	12	430x340x200	35

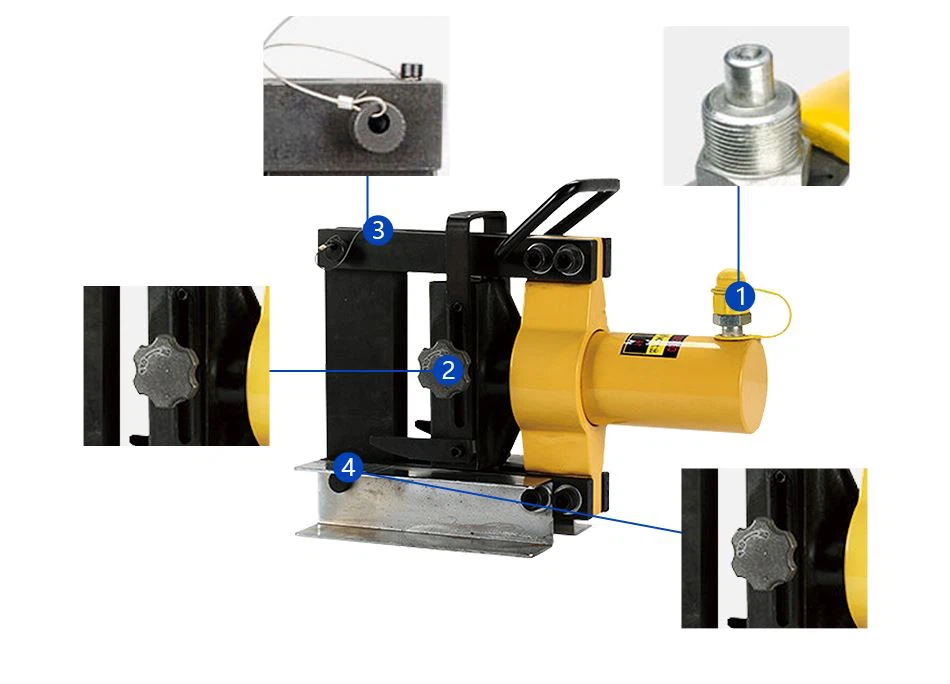

Hydraulic bending machine

This machine is a special machine for flat-bending copper and aluminum bus bars. CB-150D can be lifted when bending long copper bars. N-type or L-type can pull out the card bolt, and the whole row can be unimpeded.
