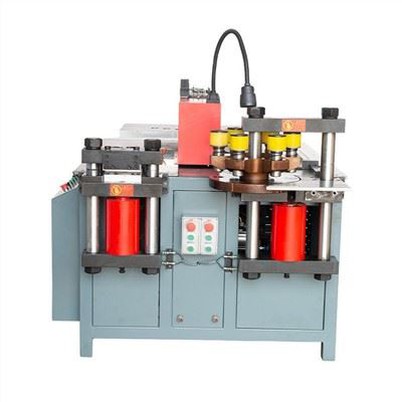

Bus Duct Connection Row Processing Machine

Function: Cutting, Bending, Punching
Maximum thickness: 16mm
Maximum width: 260mm
Motor Power: 3×5.5KW

Description

Product Details

The bending angle is controlled by the PLC and the displacement sensor in cooperation with each other, and it has the functions of storage and memory and error compensation, and the bending accuracy and angle consistency are guaranteed.

The perfect combination of the two-way positioning design and the table scale makes the product punching more accurate, and the precise scale can be measured at any time, which improves the work efficiency and reduces the production of defective products.

Features:

1. Punching station: Turret punch unit installed with 6 punching dies, no need to change punching dies frequently, save time, reduce die change error, longthen the lifetime of punching dies.

2. Cutting station: Two scissors shearing struction. there is no waste busbar generated. The cutting edge is smooth and neat.

3. Bending station: NC control the precision of bending angel. It can bend copper and aluminum busbar in vertical direction and horizontal direction. Through using the customized dies. The bending station can bend copper and aluminum round bars, twisting copper and aluminum flat bars, press cable joint etc.

Product Application

Functions:

1. Punching copper and aluminum busbar.

2. Bending copper and aluminum busbar. (vertical direction and horizontal direction)

3. Cutting copper and aluminum busbar.

4. Twisting copper and aluminum busbar.

5. Cutting corner of copper and aluminum busbar.

6. Bending copper round bars.

Product Parameter

Model No.	DS-503SK-B
Colour	Gray
Punch	Max. Punch Force	500kn
	Punch Diameter	∅4.3—∅36mm
	Max. Thickness	16mm
	Max. Width	260mm
Shear Cut	Max. Cut Force	800kn
	Max. Cut Thickness	16mm
	Max. Cut Width	260mm
Horizontal Bend	Max. Punch Force	500kn
	Max. Thickness	16mm
	Max. Width	260mm
Vertical Bend	Max. Width	10 x 100
Vertical Bend	Max. Angle (Degree)	90°
Dimension	MM	192515601490mm
Moteur Power	KW	*35.5**
Weight	KG	1950
CNC Precision	Bend Precision	±1°
CNC Precision	Repeat Bend Precision	±0.2°
Accessories		Quantity
Punching die		8 sets
Horizontal bending die		2 sets
Cutting knife		1 set
Equipment specification		1 set
Foot switch		3 sets
Embossing die		1 set
Duplicate relay		1 set
Standby proximity switch		1 set
Maintenance tool		1 set
Leveling Foundation		4 set
Vertical bending die		1 set
Punching location needle/lamp		1 set
