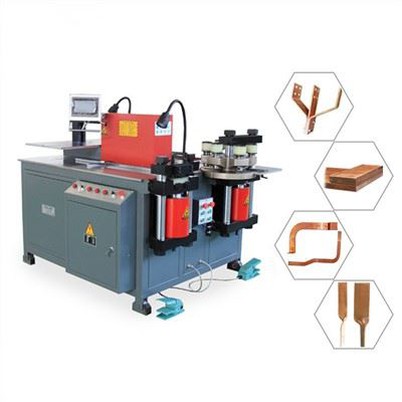

Apa-25 CNC Hydraulic Busbar Steel Hole Punching Machines

Apa-25 CNC Hydraulic Busbar Steel Hole Punching Machines

Punching Unit:
1. Material: Copper / aluminum;
2. Maximum punching: ф4.3～ф36㎜
Shear Unit:
1. Material: Copper / aluminum;
2. Maximum Size: 12*300mm;
3. Maximum output force: 300-800KN.

Send Inquiry

Description



Product Details


1


The main purpose of the bus processing machine is suitable for high and low voltage switchgear, high and low voltage complete sets, power transformers and other manufacturing industries. The main function is to process various specifications of copper and aluminum bus bars.




Copper Cutting Machine 503SK-B machine can reach 2 tons, the punching/bending force can reach 800kn, the widest processing range can be processed to 300mm, and the thickest can be processed to 20mm.



WPS(1)

Hydraulic Busbar Punching Machine


Product Application


The main purpose of the bus processing machine is suitable for high and low voltage switchgear, high and low voltage complete sets, power transformers and other manufacturing industries.

Busbar application


Product Parameter


Function

Model

DS-303SK-B

DS-503SK-B

DS-803SK-B

Punching

Max. punching force (kn)

300

500

800

Punching diameter range (mm)

4.3-30

4.3-36

4.3-36

Max. thickness (mm)

15

16

20

Max. width (mm)

160

260

300

Shearing/Cutting

Max. shearing thickness (mm)

15

16

20

Max. shearing width (mm)

160

260

300

Horizontal bending

Max. bending force (kn)

300

500

800

Max. width (mm)

160

260

300

Max. thickness (mm)

15

16

20

Horizontal bending

Max. width (mm)

100

120

120

Min. angle (Degree)

90°

90°

90°

Out dimension

mm

1900*1350*1400

1925*1560*1490

2050*1600*1650

Power

kw

3x4kw

3x5.5kw

3x5.5kw

Weight

Kg

1400kg

1950kg

2350kg

CNC precision

Bending precision

±1°

±1°

±1°

Repeat bending precision

±0.3

±0.3

±0.3


Main Charateristics


1. Adjustable foot pads: to ensure the stability of the equipment.

2. Independent motor: 3 stations operate at the same time, avoiding motor damage caused by overload.

3. Power-off protection: real-time monitoring of machine operation, automatic power-off protection of motors and other important components.

4. Durability: The electronic components of Siemens，Schneider and other big brands are durable and avoid the aging of the circuit and cause short circuit.

5: Safety protective cover: to prevent the machine from hurting fingers or other objects during the operation of the machine.

6: Urgent stop: in case of emergency, stop immediately.
