(1) Set multiple irregular punching holes with different coordinates, and directly fill in the coordinates
(2) Set up multiple templates: 1 hole, 2 holes, 4 holes, etc., making it simple and efficient to directly apply templates.
High Efficiency Servo Motor Automatic Positioning Busbar Punching Machine
This equipment is a servo motor automatic punching busbar machine. The punching station controls the punching coordinates through the servo motor and PLC, which can achieve continuous positioning and punching of porous workpieces, which is efficient and accurate.
Description
Jinan Deshang CNC Equipment Co., Ltd. is one of the leading manufacturers and suppliers of high efficiency servo motor automatic positioning busbar punching machine in China, featured by quality products and good price. Please rest assured to buy advanced equipment for sale here from our factory. We also accept OEM orders.
Product Description
This machine is equipped with a CNC servo system for automatic positioning. By
controlling the punching coordinates through a servo motor and PLC, it can achieve
continuous positioning and punching of porous workpieces, which is efficient and accurate.
● Punching Mode
Technical Parameters
|
Functionality
|
Unit
|
DSBRJ-100
|
|
Punching processing |
Maximum punching force (KN)
|
500
|
|
Punching range (㎜)
|
ф 4.3~ф 36
|
|
|
Maximum thickness (mm)
|
16
|
|
|
Maximum width (mm)
|
260
|
|
|
Overall dimensions
|
mm
|
2100*1710*1670
|
|
Motor Powe
|
KW
|
3×5.5KW
|
|
machine weight
|
KG
|
1900KG
|
|
power requirements
|
V/F
|
380V,220V,415V Customizable
|
|
Punching Y-axis effective stroke
|
mm
|
1200mm
|
|
Punching X-axis effective travel
|
mm
|
2200mm
|
Product Details

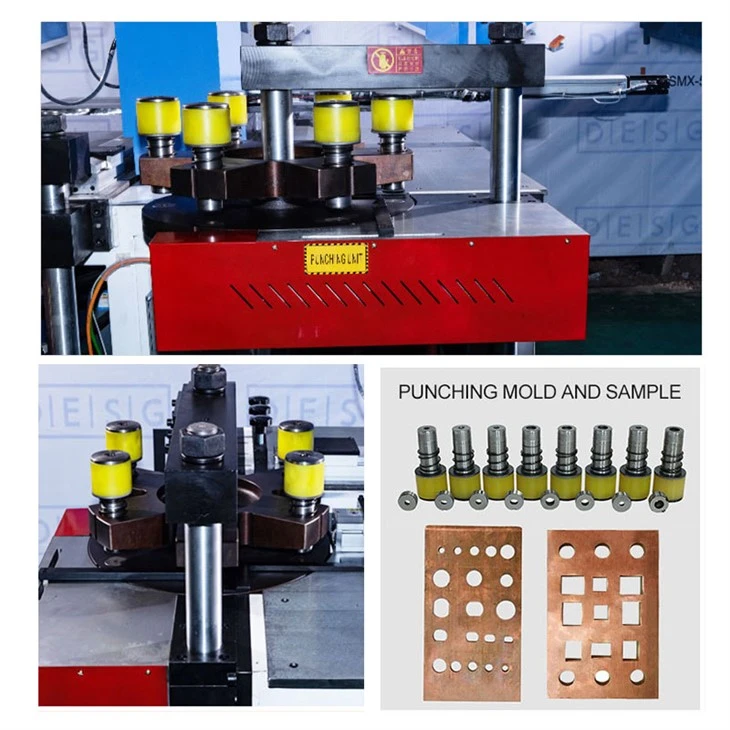

★Punching unit
① Adopting a six mold integrated turntable (the mold installation holes are processed by CNC
machining centers with high accuracy).
② During use, there is no need to frequently replace the mold, thereby improving work efficiency.
③ There are no indentations on the surface of the workpiece.
④ Equipped with a CNC servo system for automatic positioning, which can be touched Set the
required drilling distance and pitch on the screen, and automatically adjust the Y-axis and X-axis
positions to achieve high-precision drilling without the need for marking.
★PLC Control
The punching CNC touch screen can store multiple sets of punching size parameters,
The punching CNC touch screen can store multiple sets of punching size parameters,
and the system can store edited punching holes Size parameters. The next time the
same workpiece is processed, it can be directly called without further editing.
Product Samples
The main function is to process copper and aluminum busbars of different specifications.
Through the punching unit, various types of processing and punching (circular and punching)
can be quickly and conveniently carried out on copper and aluminum busbars.
Product applicability
The three-in-one multifunctional copper busbar processing machine used for this switchgear
is widely used in the manufacturing of switchgear, electrical control panels, high and low voltage
switchgear, substations, voltage transformers, electrical switches, shipbuilding, electric elevator
manufacturing, electrical cabinet manufacturing, and distribution system product manufacturing.
