CH70 CB200A CWC200 Busbar Bending Cutting Punching Machine

Portable busbar processing machine

CH70 CB200A CWC200 Busbar Bending Cutting Punching Machine

1) Mainly used for punching, cutting, and bending of copper aluminum strips and thin iron plates

2) This machine is easy to operate and convenient to use. Generally speaking, mature workers

can easily use and operate it.

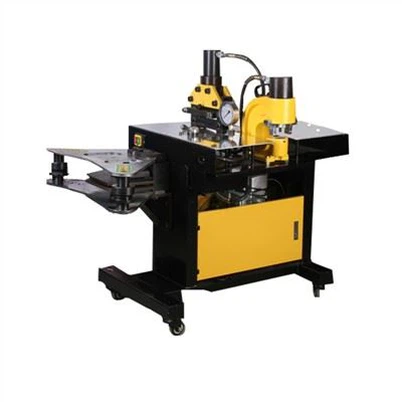

Portable busbar machine: fully functional for punching, cutting, and bending

#Hydraulic Punching Machine

Specially used for stamping metal sheets such as angle iron, flat iron, copper plate, etc.,

especially suitable for outdoor construction operations in industries such as power construction.



CH70 CB200A CWC200 Busbar Bending Cutting Punching Machine

Technical parameters



Model	CH-60	CH-70
Output	31T	35T
Depth of throat	95mm	110mm
Angle steel	4-8#	5-10#
Channel steel	6-10#	6-12#
Copper and aluminum row	3-10mm	3-12mm
iron plate	3-8mm	3-10mm
Standard setting	Ø10.5，Ø 13.8，Ø 17.5，Ø 20.5	Ø10.5，Ø 13.8，Ø 17.5，Ø 20.5
Weight	20kg	35kg
Volume	350x220x75mm	350x265x115mm
Product features	Portable hydraulic punching machines are suitable for L, H flat steel, copper and aluminum punching machines. The bottom is designed with a flat seat, which is stable and not easy to sway. Single hole oil return, the mold is made of high carbon tungsten alloy steel, which is not easily damaged.



#Hydraulic CuttingMachine

Suitable for cutting copper, aluminum, iron and other metal materials. The cutter is made

of alloy steeland heat-treated. The fracture is smooth and tidy, without burrs and waste.



Model	Output	Thickness of sheet	Width of sheet	Size	Weight
CWC-150	25T	2-10mm	≤150mm	270x150x410mm	30kg
CWC-200	35T	2-12mm	≤200mm	325x150x435mm	38kg
Product features	Suitable for wiring engineering of switch boxes and automatic control panels of distribution boards, adopting a separate type for easy portability. Single hole oil return, especially suitable for outdoor construction operations in industries such as power and construction.



#Hydraulic Bending Machine

The design has an angle of 90 degrees and 45 degrees to avoid excessive. When bending

the copper bar, you must pay attention to the center position of the copper bar must be

aligned with the scale 0 degrees.

Model	Output	Thickness of sheet	Width of sheet	Size	Weight
CB-150D	20T	≤10mm	≤150mm	360x130x260mm	21kg
CB-200A	25T	≤12mm	≤200mm	215x180x350mm	29kg
Product features	Suitable for wiring engineering of switch boxes and automatic control panels of distribution boards, adopting a separate type for easy portability. The minimum bending angle of copper or aluminum bars can reach 90 degrees. Single hole oil return, especially for outdoor construction operations in industries such as power and construction





#Hydraulic Electric Pump

Solenoid valve singlecircuit electric pump Solenoid valve typefoot switch

Model	Electric pump
Extra work pressure	63MPA	70MPA
Flow	1L/min	1L/min
Power of motor	750W	750W
Voltage	220V	220V
Oil storage capacity	5L	5L
Overall dimensions	350x270x490	350x270x490
Control mode	Electromagnetic valve foot switch	Electromagnetic valve foot switch



Company Profile

The company currently has 92 employees, including 23 professional and technical personnel

with intermediate and senior technical qualifications, and 54% of employees have a university

degree or above. Dechang CNC equipment includes CNC bus bar processing machine, CNC

bus bar punching and shearing machine, CNC bus bar Press brake, standard copper bar

processing machine, economic copper bar processing machine, bus bar leveling machine,

CNC copper aluminum bar processing machine, bus bar machine, copper bar machine, etc.

The products are widely used in high and low voltage complete sets, switchgear, box type

substation, transformer, Bus duct, communication equipment, air conditioning and refrigeration,

sheet metal, chassis and cabinet and other industries. We can also design and customize

according to different customer processing ranges and color requirements.



The company integrates R&D, production, sales and service. It has successively obtained

many certificates such as service and credit unit, integrity management demonstration unit,

quality and credit unit, CE certification and ISO9001 certification, and has obtained

appearance patents and utility model patents.



Product packaging

CH70 CB200A CWC200 Busbar Bending Cutting Punching Machine



FAQ

1.What is your payment terms?

40% T/T deposit, 60% balance be paid before loading after good ready.

2. What is your delivery time?

Within 15 working days after your deposit.

3. What is your power supply?

We could customized it according to your countries power supply.

4. What is your Min order quantity?

One set.

5. Are all the labels and instuctions of the machine in English?

Yes. The labels on the machine and the manual books are Write in English .

6. What other busbar processing related machines do we provide?

We provide you with multiple options: Busbar winding machine,

busbar chamfering machine, copper plate leveling machine,

portable busbar processing machine,busbar cutting tools,

busbar bending tools, busbar punching tools,hydraulic pump,

hand pump, etc.
