Automatic Busbar Machine

This fully servo automatic busbar processing machine is equipped with 4 servo motors, covering three working units: punching XY axis automatic servo stopper, shearing automatic servo stopper, and bending automatic servo stopper, and is equipped with 3 touch screens.

Send Inquiry

Description

Products Description

This equipment is a full servo automatic busbar machine equipped with four servo motors, three working units: punching XY axis automatic servo stopper, shearing automatic servo stopper, bending automatic servo stopper, and three touch screens. The servo motor has high-precision and precise control of the movement of each unit to ensure processing accuracy and efficiency; the touch screen is used for parameter setting and intuitive and convenient operation.
In terms of working units, the punching unit accurately controls the hole position, depth and speed, the bending unit can flexibly adjust the angle and radius to achieve bending in various shapes; the shearing unit accurately controls the shearing length to ensure the accuracy of the busbar size. With such configuration and functions, the equipment realizes automated, high-precision and high-efficiency production of busbar processing, and is widely used in the power and electrical industry.

Equipment real shot

Equipment real shot

Equipment real shot

Equipment real shot

Parameter Description

Name: Automatic Busbar Machine Model:DSCNC-50ZPS

# Core processing capabilities
1. Punching unit: Maximum punching force of 500KN, punching range of Φ3.2~Φ36mm; maximum thickness of copper bars that can be processed is 16mm, and maximum width is 260mm.
2. Shearing unit: With a maximum shearing force of 800KN, it is also suitable for processing copper bars with a thickness of 16mm and a width of 260mm.
3. Bending unit: Maximum bending force of 500KN, suitable for copper bars with a thickness of 16mm and a width of 260mm; minimum distance of U-bend is 30mm, vertical bending processing size is 100*10, and the minimum vertical curvature angle is 90°.
# Automated positioning and travel
1. Punching positioning: Y-axis automatic positioning range is 0-1200mm, and X-axis automatic positioning range is 0-300mm.
2. Stopper positioning: The automatic positioning length range of shearing and bending stops is 0-1200mm.
Actual stroke: The actual stroke of punching, shearing and bending is 1000mm, and the stroke of some functions is 200mm.
# Equipment specifications and configuration
1. Appearance size: 198015201400mm, weight 2.08 tons.
2. Power system: 3 5.5 kW motors, suitable for 220 volt voltage and 60 Hz frequency power supply.
Functional design: Equipped with 6 punching die positions, using a three-unit independent control panel to realize independent operation of punching, shearing and bending functions.

Full servo automatic busbar machine

Equipment Features

Automatic Busbar Machine Servo Stopping System Detailed Description

# Cutting: Cutting is smooth
Touch screen: Cutting mode
1. Set the same length to cut multiple pieces
2. Set different lengths to cut multiple pieces and single pieces of different lengths.

# Punching mode
Punching: precise positioning
1. Set multiple irregular punching holes with different coordinates, and directly fill in the coordinates.
2. Set multiple templates: 1 hole, 2 holes, 4 holes, etc., directly apply the template, simple and efficient, continuous positioning and punching

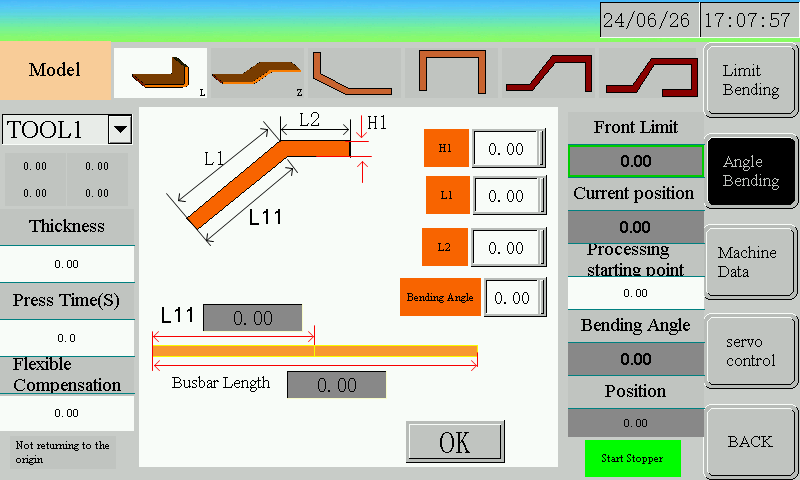

# Bending mode
Bending: with storage memory
The system interface is intuitive and easy to use, with stable and smooth performance, high bending accuracy and strong operation repeatability. Each parameter has its own memory function, and you can easily complete the processing of various workpieces by following the instructions.

Equipment samples and molds

# Punching samples ：can be replaced with different dies to obtain different samples, and punching samples can be punched continuously: as shown in the figure.

Punching die
