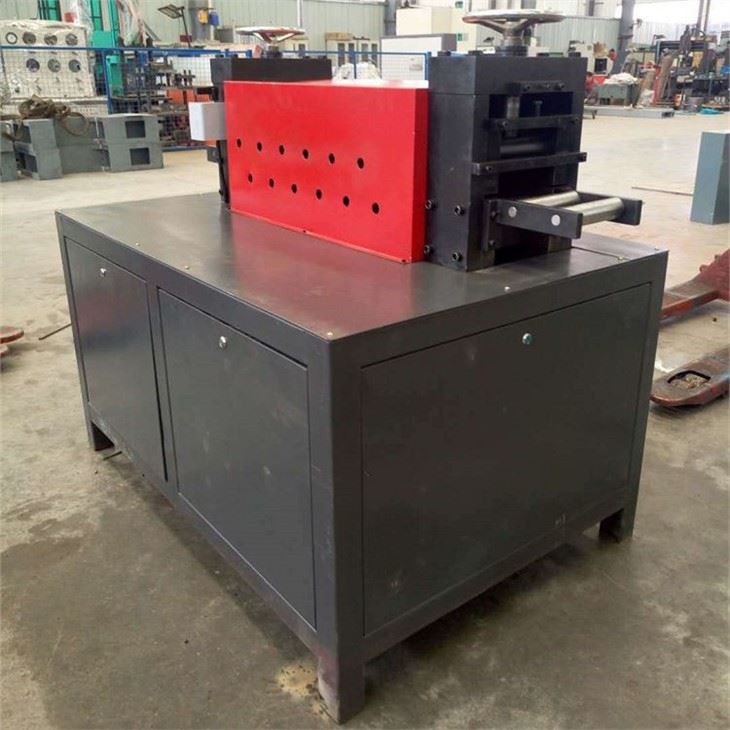

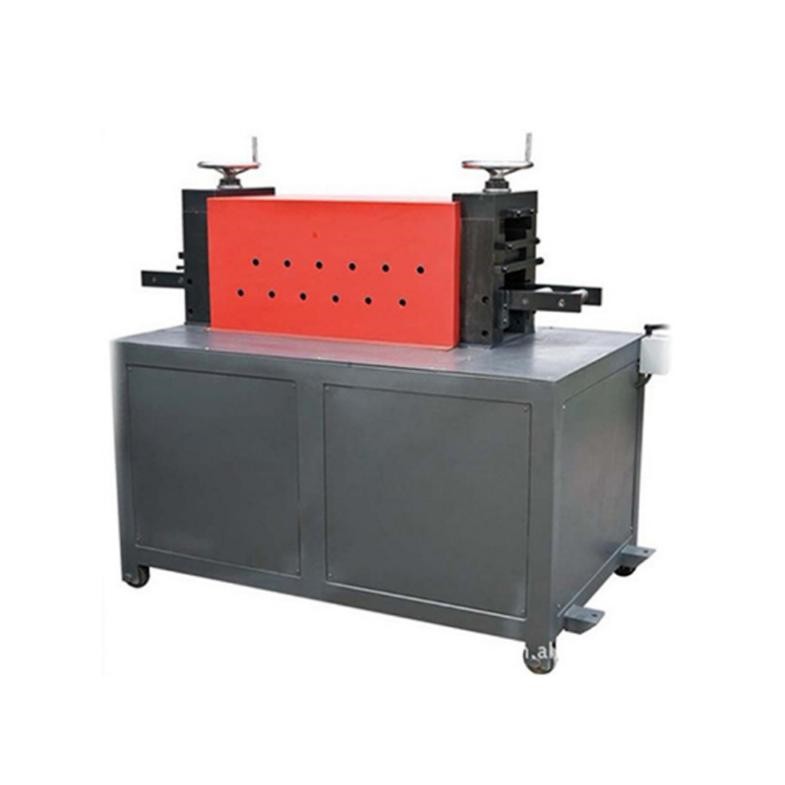

Busbar Straightening Machine
busbar straightening machine, suppliers, manufacturers, first price, OEM factory, for sale
Maximum processing width: 160-260mm
Processing thickness range: 4~12mm
Power: 3KW
Dimension (L*W*H): 1500×850×1300mm
Certification: CE/ ISO9001
Description
Jinan Deshang CNC Equipment Co., Ltd. is one of the leading manufacturers and suppliers of busbar straightening machine in China, featured by quality products and good price. Please rest assured to buy advanced equipment for sale here from our factory. We also accept OEM orders.

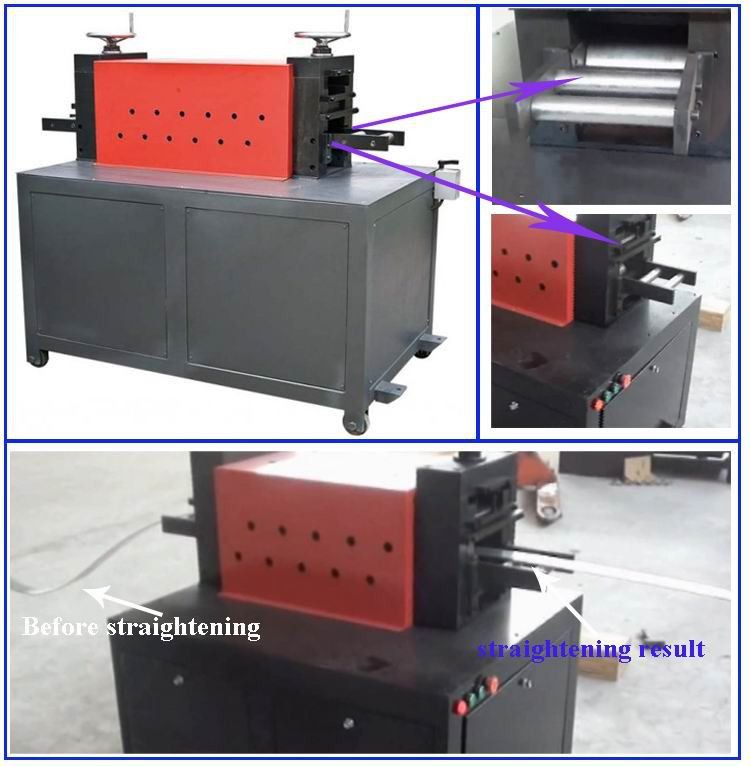

Working Principle and Use
Machine à redresser Busbar
1) principe de nivellement forcé à plusieurs rouleaux pour obtenir un bon effet de nivellement.
2) avec une grande efficacité et une utilisation commode.
Il adopte le principe de nivellement forcé à rouleaux multiples, ce qui rend les lignes de busbar
de forme irrégulière à l’état de niveau par un mouvement sinueux. Lorsque les rangées de
barres de forme irrégulière passent à travers les rouleaux dynamiques ascendantes,
la déformation non ordonnée et la contrainte interne sont supprimées.
Alors le busbar peut être assez plat.
Technical Parameters
Item | DSJP-160 | DSJP-260 |
Material of busbar | Copper, Alu | Copper, Alu |
Max.width of processing (m) | 0.16 | 0.26 |
Thickness range of processing (mm) | 3-12 | 3-12 |
Quantity of leveling roller -- up | 5 pcs | 5 pcs |
Quantity of leveling roller -- down | 6 pcs | 6 pcs |
Rotational speed of roller axis | 34 | 34 |
Leveling roller speed (mm/min) | 6500 RPM | 6500 RPM |
Diameter of leveling roller (mm) | Ø90 | Ø90 |
Worktable height (m) | 0.75 | 0.75 |
Power of motor/voltage (KW/V) | 3.0kw/380v | 3.0kw/380v |
Outline dimension L*W*H (m) | 1.5×0.85×1.3m | 1.5×0.85×1.3m |
Machine weight (KG) | 700kg | 700kg |
Our Service
1. What is your payment terms?
40% T/T deposit, 60% .
2. What is your delivery time?
Within 15 business days after your paying.
4. What is your MOQ order quantity?
1 set.
5. Are the all labels and instructions English?
Yes.
